Same model may have multiple batches, images only for reference.

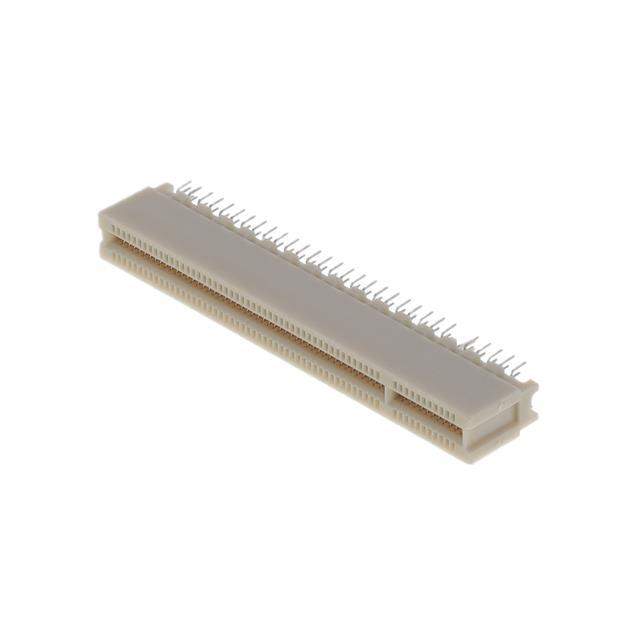

5145167-4 Real Image
Same model may have multiple batches, images only for reference.

5145167-4

Part No 5145167-4
Manufacturer TE Connectivity
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN PCI CARDEDGE FEMALE 120POS
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Card Type PCI
Gender Female
Number of Positions/Bay/Row 11; 49
Number of Positions 120
Card Thickness 0.062" (1.57mm)
Number of Rows 2
Pitch 0.050" (1.27mm)
Read Out Dual
Features Board Lock
Mounting Style Through Hole
Termination Solder, Staggered
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness 30.0μin (0.76μm)
Color Natural
Material - Insulation Thermoplastic
Manufacturer Pack Quantity 35
MSL Level 1 (Unlimited)
Win Source Part Number 759013-5145167-4
Popularity Low
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 5145167-4 CAD Model

Description

The TE Connectivity AMP Connectors electronic component is a connector with a low popularity in the market. The supply and demand status for this component is limited, and it has a manufacturer pack quantity of 35. It has a pitch of 0.050" (1.27mm) and a contact finish of gold.
