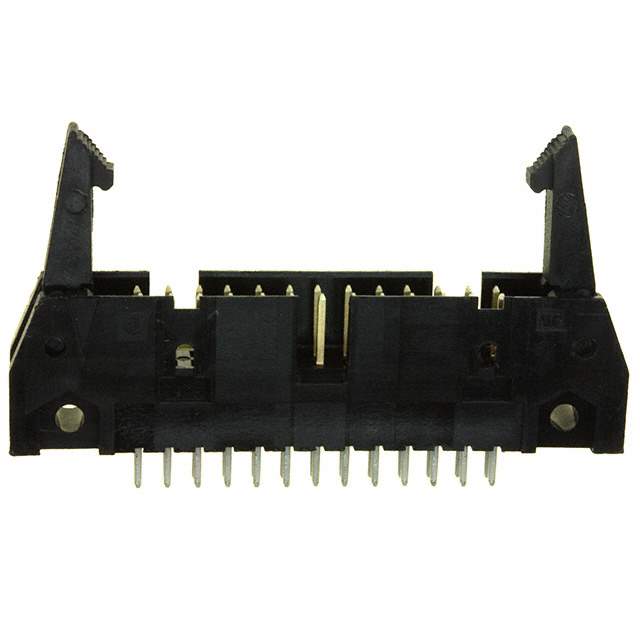

The TE Connectivity AMP-Latch header is a male pin connector that comes with 26 positions and a pitch of 0.100" (2.54mm).

• Positions: 26
• Pitch: 0.100" (2.54mm)
• Loaded: All Positions
• Mounting Flange: With Keying Slot
• Latch Lock/Eject Hooks: Yes
• Fastening Type: Long
• Termination: Soldered
• Voltage Rating: 250VAC
• Current Rating: 1A per Contact
• Contact Finish (Mating): Gold or Gold-Palladium, 15.0μin (0.38μm)
• Contact Finish (Post): Tin, 100.0μin (2.54μm)
• Shrouding: Shrouded-4 Wall
• Mounting: Through Hole
• Insulation Color: Black
• Contact Shape: Square
• Operating Temperature: -65°C to 105°C
