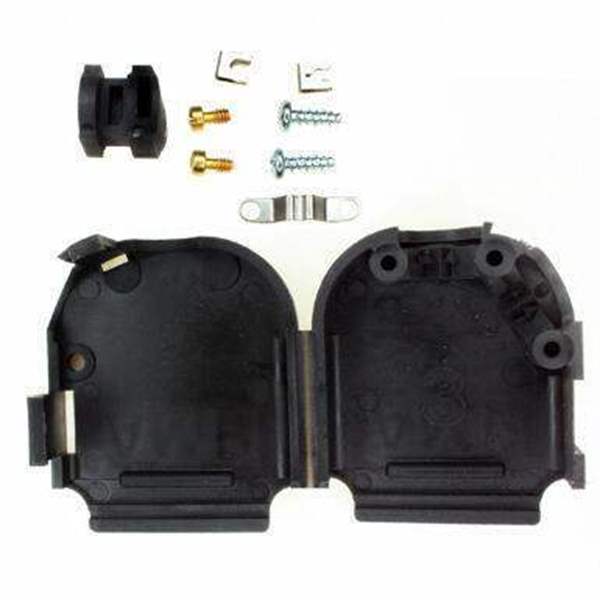

5749626-2 TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

5749626-2

Part No 5749626-2
Manufacturer TE Connectivity
Catalog D - Sub, D - Shaped Connectors - Backshells, Hoods
Description CONN BACKSHELL 25POS 120/180DEG
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects D-Sub, D-Shaped Connectors D-Sub, D-Shaped Connector Backshells, Hoods
Package Bulk
Product Status Last Time Buy
Accessory Type Hinged Backshell
Cable Type Round
Cable Exit 120°, 180°
Shielding Unshielded
Primary Material Plastic
Material Polypropylene (PP)
Hardware Assembly Hardware, Strain Relief
Win Source Part Number WS1209579-5749626-2
Ultra Librarian 3D Model Ultra Librarian 5749626-2 CAD Model

Description

25 Position Hinged Backshell Connector Black 120°, 180° Unshielded
