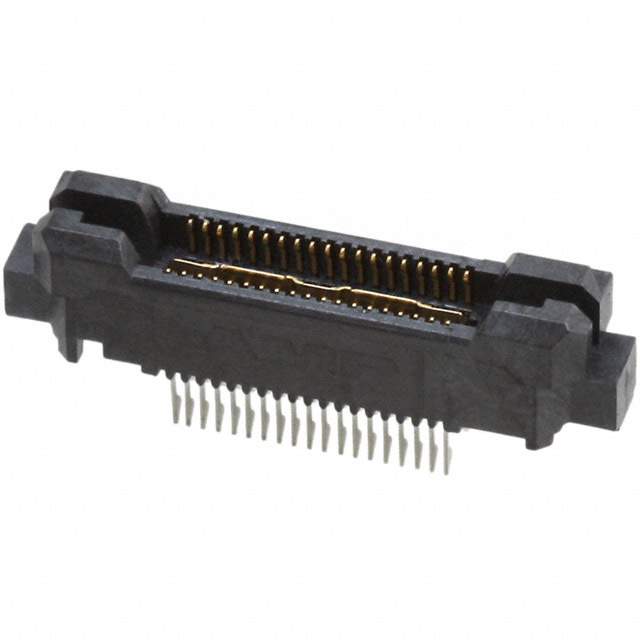

5767006-1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Arrays, Edge Type, Mezzanine (Board to Board)
Manufacturer TE Connectivity AMP Connectors
Packaging Tube
Connector Type Plug, Outer Shroud Contacts
Number of Positions 38
Pitch 0.025" (0.64mm)
Number of Rows 2
Mounting Board Edge, Straddle Mount
Features Board Guide, Ground Bus (Plane)
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Height Above Board 0.251" (6.38mm)
Base Product Number 5767006
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number A101814,-5767006-1-SI,57670061,5767006-1-ND
Standard Package 21
Win Source Part Number 1334014-5767006-1
Ultra Librarian 3D Model Ultra Librarian 5767006-1 CAD Model

Description

The TE Connectivity AMP Connectors 1334014-5767006-1 is a rectangular connector array that is commonly used in mezzanine (board to board) applications.

  • Positions: 38
  • Pitch: 0.025" (0.64mm)
  • Features: Board Guide and Ground Bus (Plane)
  • Contact Type: Plug Outer Shroud
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Mounting: Board Edge, Straddle Mount
  • Height Above Board: 0.251" (6.38mm)
  • Standard Package: 21
  • ROHS3 Compliant: Yes
