Same model may have multiple batches, images only for reference.

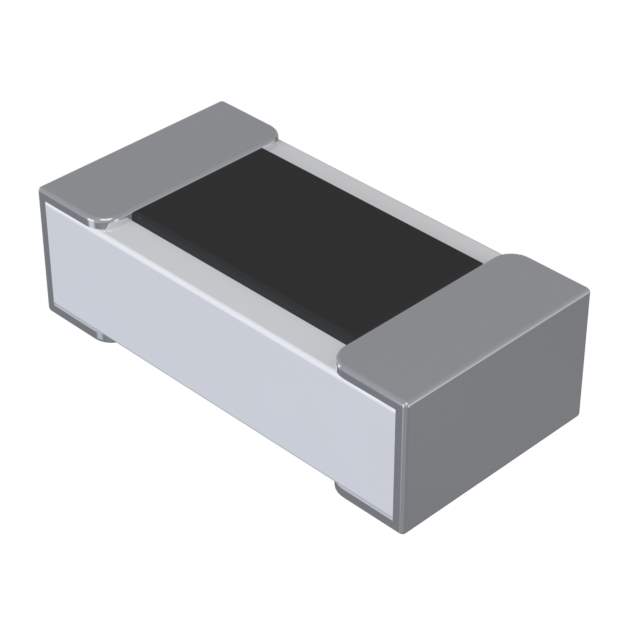

7-2176305-5 Real Image
Same model may have multiple batches, images only for reference.

7-2176305-5

Part No 7-2176305-5
Manufacturer TE Connectivity
Catalog Chip Resistor - Surface Mount
Description Res Thin Film 0402 634 Ohm 0.1% 0.1W(1/10W) ±25ppm/°C Pad SMD Medical T/R
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package 0402
Composition Thin Film
Height 350 µm
Maximum Operating Temperature 155 °C
Min Operating Temperature -55 °C
Power Rating 100 mW
Resistance 634 Ω
RoHS Non-Compliant
Schedule B 8533210045, 8533210045
Temperature Coefficient 25 ppm/°C
Tolerance 0.1 %
Voltage Rating 50 V
Voltage Rating (DC) 50 V
Win Source Part Number 962883-7-2176305-5
Categories Chip Resistor - Surface Mount
Manufacturer TE Connectivity
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 7-2176305-5 CAD Model

Description

The TE Connectivity chip resistor is a surface mount device with a 0402 package and a voltage rating of 50V.

  • Manufacturer: TE Connectivity
  • Mounting Type: Surface Mount
  • Package / Case: 0402
  • Voltage Rating: 50V
  • Composition: Thin Film
  • Resistance: 634 Ω
  • Tolerance: 0.1%
  • Temperature Coefficient: 25 ppm/°C
  • Power Rating: 100 mW
  • Popularity: Low
  • Supply Status: Shortage
  • Maximum Operating Temperature: 155°C
  • Minimum Operating Temperature: -55°C
  • RoHS Compliant: No
  • Schedule B: 8533210045
