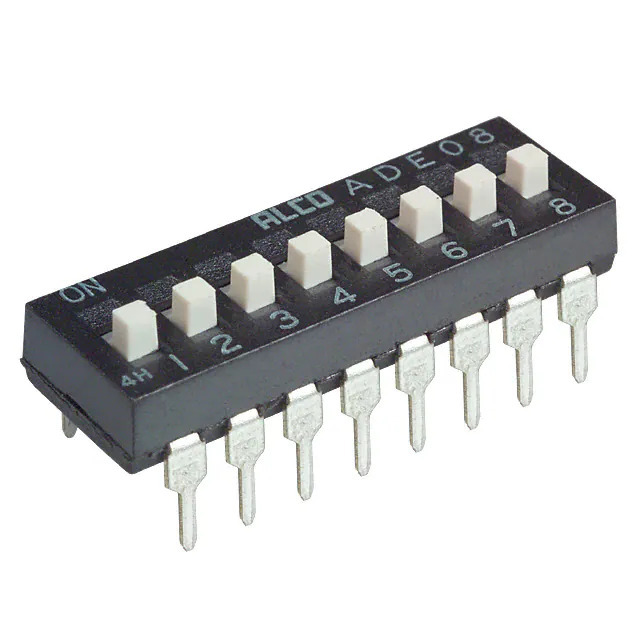

ADE08 TE Connectivity
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr TE Connectivity ALCOSWITCH Switches
Series ADE
Package Tube
Product Status Obsolete
Circuit SPST
Number of Positions 8
Current Rating (Amps) 100mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.232" (5.90mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Features -
Temperature Range - Operating -30°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS)
Length 0.878" (22.30mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Base Product Number ADE08
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1377747-ADE08
Ultra Librarian 3D Model Ultra Librarian ADE08 CAD Model

Description

The ADE08 is a slide DIP switch from TE Connectivity ALCOSWITCH Switches.

  • Mounting Type: Through-Hole
  • Voltage Rating: 24VDC
  • Current Rating: 100mA
  • Positions: 8
  • Material: Polyphenylene Sulfide (PPS)
  • Mechanical Life: 1,000 Cycles
  • Electrical Life: 1,000 Cycles
  • Actuator Type: Slide
  • Termination Style: PC Pin
  • Height Above Board: 0.232" (5.90mm)
  • Actuator Level: Raised
  • Washable: Yes
  • Package: Tube
  • Product Status: Obsolete
