Same model may have multiple batches, images only for reference.

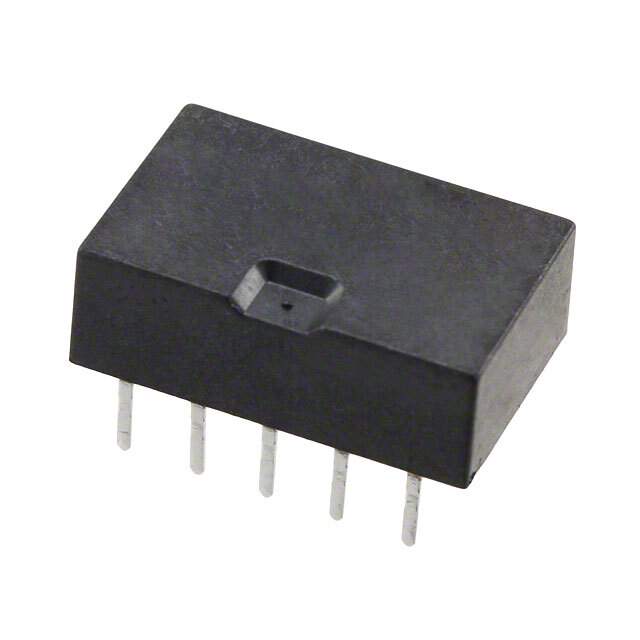

D3009 Real Image
Same model may have multiple batches, images only for reference.

D3009

Part No D3009
Manufacturer TE Connectivity
Catalog Signal Relays, Up to 2 Amps
Description RELAY TELECOM DPDT 2A 5VDC / Telecom Relay DPDT (2 Form C) Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Signal Relays, Up to 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series FP2, AXICOM
Package Tube
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 2 A
Switching Voltage 250VAC, 220VDC - Max
Coil Current 28 mA
Coil Type Non Latching
Termination Style PC Pin
Must Operate Voltage 3.5 VDC
Must Release Voltage 0.5 VDC
Operate Time 4 ms
Release Time 3 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Palladium (Pd), Ruthenium (Ru), Gold (Au)
Relay Type Telecom
Coil Resistance 178 Ohms
Base Product Number D300
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 1314749-D3009
Ultra Librarian 3D Model Ultra Librarian D3009 CAD Model

Description

The TE Connectivity Potter & Brumfield Relays FP2, AXICOM signal relay is a DPDT (2 Form C) contact form relay that has a contact rating of 2 A.

  • Switching Voltage: 250VAC and 220VDC (Max)
  • Coil Voltage: 5VDC
  • Coil Resistance: 178 Ohms
  • Mounting Type: Through-hole
  • Temperature Range: -40°C to 85°C
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8536.41.0020
