Same model may have multiple batches, images only for reference.

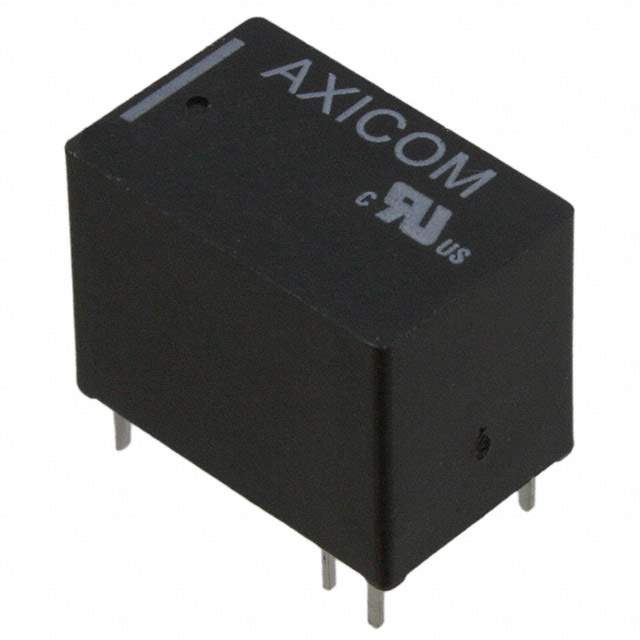

V23101D 101B201 Real Image
Same model may have multiple batches, images only for reference.

V23101D 101B201

Part No V23101D 101B201
Manufacturer TE Connectivity
Catalog Signal Relays, Up to 2 Amps
Description RELAY GEN PURP SPDT 1.25A 1.5VDC / General Purpose Relay SPDT (1 Form C) Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Signal Relays, Up to 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series V23101, AXICOM
Package Tube
Mounting Type Through Hole
Coil Voltage 1.5VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 1.25 A
Switching Voltage 125VAC, 120VDC - Max
Coil Current 125 mA
Coil Type Non Latching
Termination Style PC Pin
Must Operate Voltage 1.1 VDC
Must Release Voltage 0.15 VDC
Operate Time 7 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Palladium (AgPd), Gold (Au)
Relay Type General Purpose
Coil Resistance 12 Ohms
Base Product Number V23101
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 1315085-V23101D 101B201
Ultra Librarian 3D Model Ultra Librarian V23101D 101B201 CAD Model

Description

The V23101D 101B201 is a relay manufactured by TE Connectivity Potter & Brumfield Relays.

  • Win Source Part Number: 1315085-V23101D 101B201
  • Category: signal relays, up to 2 Amps
  • Contact Form: single pole double throw (SPDT)
  • Contact Material: silver palladium (AgPd), gold (Au)
  • Coil Resistance: 12 Ohms
  • Coil Current: 125mA
  • Coil Voltage: 1.5VDC
  • Contact Rating (Current): 1.25A
