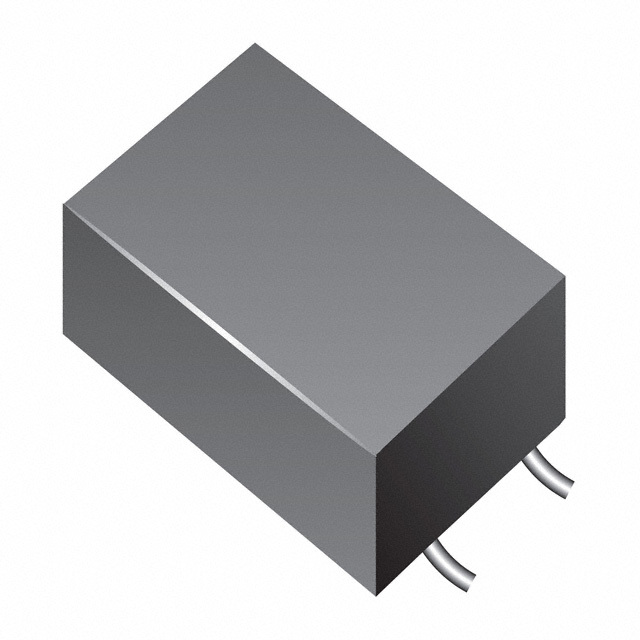

EH28-1.5-02-27M-X

Part No EH28-1.5-02-27M-X
Manufacturer TE Connectivity
Catalog Common Mode Chokes
Description CMC 27MH 1.5A 2LN TH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 27 mH @ 400 Hz
Current Rating (Max) 1.5A
DC Resistance (DCR) (Max) 282mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 100°C
Mounting Type Through Hole
Size / Dimension 1.102" L x 1.102" W (28.00mm x 28.00mm)
Height (Max) 0.941" (23.90mm)
Case / Package Horizontal, 4 PC Pin
Package Tube
Supply and Demand Status Shortage
Win Source Part Number 1530528-EH28-1.5-02-27M-X
Ultra Librarian 3D Model Ultra Librarian EH28-1.5-02-27M-X CAD Model
