Same model may have multiple batches, images only for reference.

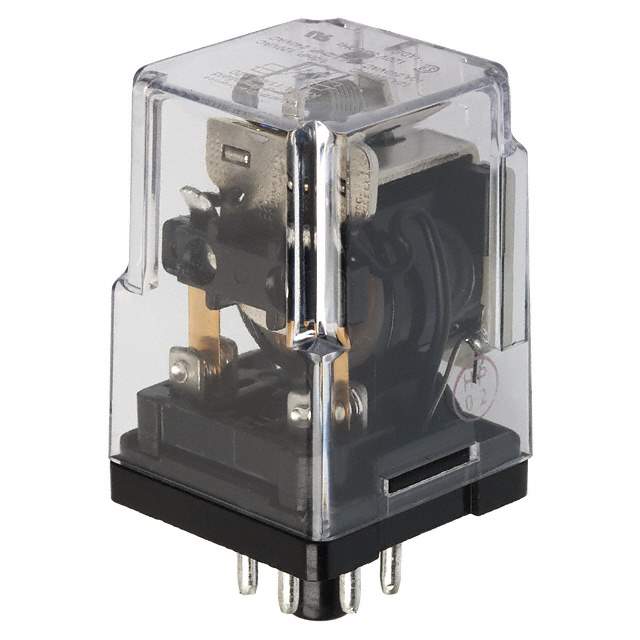

KRPA-5DG-12 Real Image
Same model may have multiple batches, images only for reference.

KRPA-5DG-12

Part No KRPA-5DG-12
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 10A 12V / Power Relay 12VDC 10A SPDT(35.7x35.7x50.8)mm Socket
Datasheet
KRPA-5DG-12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Series KRPA
Packaging Bulk
Relay Type General
Coil Type Non Latching
Coil Current 100mA
Coil Voltage 12VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 10A
Switching Voltage 240VAC - Max
Turn On Voltage (Maximum) 9 VDC
Features Insulation - Class B
Mounting Socketable
Termination Style Plug In, 8 Pin (Octal)
Contact Material Silver Cadmium Oxide (AgCdO)
Coil Power 1.2 W
Coil Resistance 120 Ohms
Operating Temperature Range -45°C ~ 70°C
Win Source Part Number 769449-KRPA-5DG-12
Popularity Medium
Supply and Demand Status Limited
Family Name KRPA
Introduction Date April 02, 2004
ECCN EAR99
Country of Origin China, Mexico, United States of America
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian KRPA-5DG-12 CAD Model

Description

TE Connectivity Potter & Brumfield Relays KRPA is a general relay type with a SPDT (1 Form C) contact form.

  • Coil Voltage: 12VDC
  • Coil Resistance: 120 Ohms
  • Features: Socketable
  • Switching Voltage: 240VAC - Max
  • Series: KRPA
  • Insulation: Class B
  • Contact Rating (Current): 10A
  • Operating Temperature Range: -45°C ~ 70°C
  • Package Type: Bulk
  • Country of Origin: China, Mexico, United States of America
  • Estimated EOL Date: 2023
