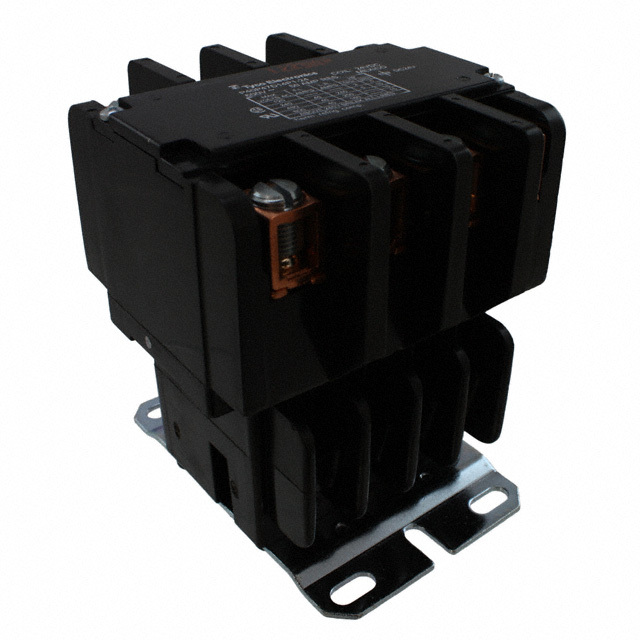

Same model may have multiple batches, images only for reference.
PRD-11DG0-24 TE Connectivity – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

PRD-11DG0-24

Part No PRD-11DG0-24
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 30A 24V
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Mounting Type Chassis Mount
Coil Voltage 24VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 30 A
Switching Voltage 600VAC, 125VDC - Nom
Coil Current 84 mA
Coil Type Non Latching
Termination Style Screw Terminal
Coil Insulation Class B
Must Operate Voltage 18 VDC
Must Release Voltage 2.4 VDC
Operate Time 40 ms
Release Time 20 ms
Temperature Range - Operating -55°C ~ 80°C
Contact Material Silver Cadmium Oxide (AgCdO)
Approval Agency CSA, UL
Relay Type General Purpose
Package Tray
Supply and Demand Status Shortage
Win Source Part Number 1549360-PRD-11DG0-24
Ultra Librarian 3D Model Ultra Librarian PRD-11DG0-24 CAD Model
