Same model may have multiple batches, images only for reference.

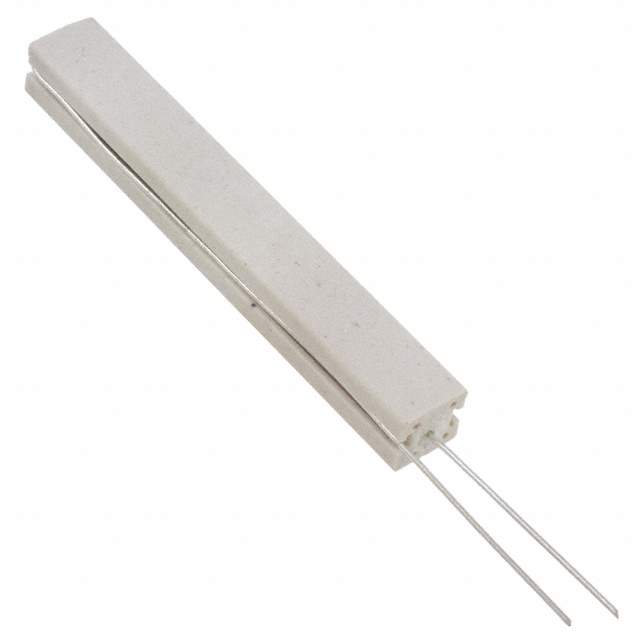

SBCHE153R3K Real Image
Same model may have multiple batches, images only for reference.

SBCHE153R3K

Part No SBCHE153R3K
Manufacturer TE Connectivity
Catalog Through Hole Resistors
Description RES 3.3 OHM 10% 17W AXIAL  /  3.3 Ohms ±10% 17W Through Hole Resistor Axial, Radial Formed Flame Proof, Safety Wirewound
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Through Hole Resistors
Mfr TE Connectivity Passive Product
Series SBC, CGS
Package Bulk
Resistance 3.3 Ohms
Tolerance ±10%
Power (Watts) 17W
Composition Wirewound
Features Flame Proof, Safety
Temperature Coefficient ±400ppm/°C
Temperature Range - Operating -55°C ~ 350°C
Package / Case Axial, Radial Formed
Dimension 0.394" x 0.354" Rectangular x 2.953" L (10.00mm x 9.00mm x 75.00mm)
Number of Terminations 2
Base Product Number SBCHE15
MSL Level Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8533.21.0080
Other Names SBCHE153R3K-ND,1-1623729-9,A131201,1-1623729-9-ND
Standard Package 100
Win Source Part Number 1056606-SBCHE153R3K
Ultra Librarian 3D Model Ultra Librarian SBCHE153R3K CAD Model

Description

The TE Connectivity Passive Product SBCHE153R3K is a wirewound resistor that belongs to the SBC, CGS series. SBCHE153R3K from TE Connectivity Passive Product.

  • Series: SBC, CGS
  • Type: Flame Proof, Safety
  • Packaging: Bulk
  • Power Rating: 17W
  • Resistance: 3.3 Ohms
  • Tolerance: ±10%
  • Temperature Coefficient: ±400ppm/°C
  • Temperature Range: -55°C to 350°C
  • Package/Case: Axial, Radial Formed
