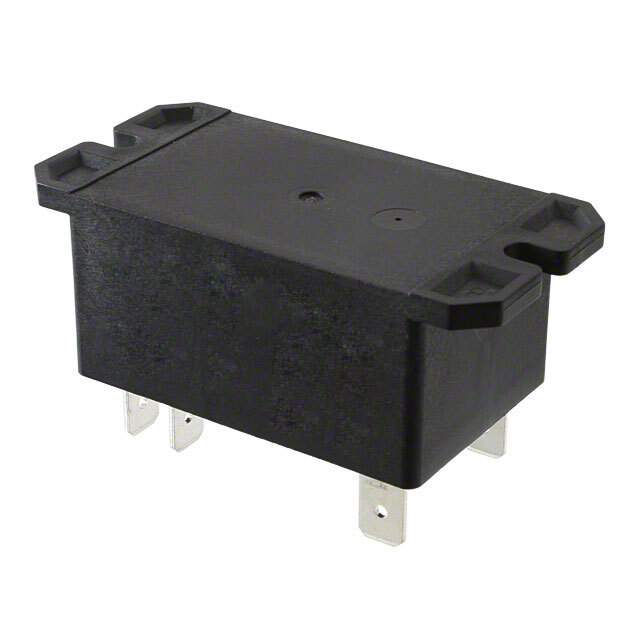

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series T92
Package Bulk
Mounting Type Chassis Mount
Coil Voltage 48VDC
Contact Form DPST-NO (2 Form A)
Contact Rating (Current) 30 A
Switching Voltage 277VAC - Nom
Coil Current 35.4 mA
Coil Type Non Latching
Termination Style Quick Connect - 0.250" (6.3mm)
Coil Insulation Class F
Must Operate Voltage 36 VDC
Must Release Voltage 4.8 VDC
Operate Time 15 ms
Release Time 15 ms
Temperature Range - Operating -55°C ~ 85°C
Contact Material Silver Cadmium Oxide (AgCdO)
Relay Type General Purpose
Coil Resistance 1.39 kOhms
Base Product Number T92P7
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.41.0050
Other Names PB2196,T92P7D22-48-ND,7-1393211-2,-T92P7D22-48-SI
Standard Package 30
Win Source Part Number 1207227-T92P7D22-48
Ultra Librarian 3D Model Ultra Librarian T92P7D22-48 CAD Model

Description

The TE Connectivity Potter & Brumfield Relays T92P7D22-48 is a DPST-NO (2 Form A) power relay that can switch up to 30 A of current @ 277VAC - Nom.

  • Coil Voltage: 48VDC
  • Coil Resistance: 1.39 kOhms
  • Termination Style: Quick connect 0.250" (6.3mm)
  • Package: Bulk
  • Release and Operate Time: 15 ms
  • Application: General purpose
  • RoHS Compliant: Yes
  • Temperature Range: -55°C ~ 85°C
