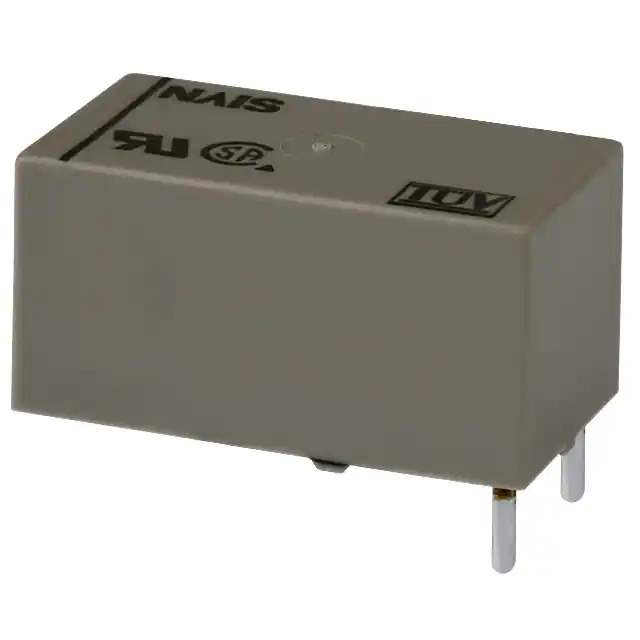

DSP1A-L2-DC3V Real Image
Same model may have multiple batches, images only for reference.

DSP1A-L2-DC3V

Part No DSP1A-L2-DC3V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 8A 3V / General Purpose Relay SPST-NO (1 Form A) 3VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic
Series DSP
Package Bulk
Product Status Active
Mounting Type Through Hole
Coil Voltage 3VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 8 A
Switching Voltage 250VAC, 30VDC - Max
Coil Current 100 mA
Coil Type Latching, Dual Coil
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 2.4 VDC
Operate Time 10 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 60°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 30 Ohms
Base Product Number DSP1
Standard Package 50 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 869710-DSP1A-L2-DC3V
Ultra Librarian 3D Model Ultra Librarian DSP1A-L2-DC3V CAD Model

Description

The DSP1A-L2-DC3V is a power relay from the DSP series by Panasonic.

  • Type: single-pole, single-throw (SPST-NO)
  • Termination Style: PC pin
  • Contacts: silver tin oxide (AgSnO)
  • Coil Voltage: 3VDC
  • Coil Resistance: 30 Ohms
  • Maximum Current: 8 A
  • Maximum Voltage: 250VAC or 30VDC
  • Seal: sealed and fully protected
  • Mounting: through-hole mountable
  • Operating Temperature Range: -40°C to 60°C
  • Standard Package: 50 pcs
  • Commonly used in: industrial control systems, automotive electronics, and home appliances
