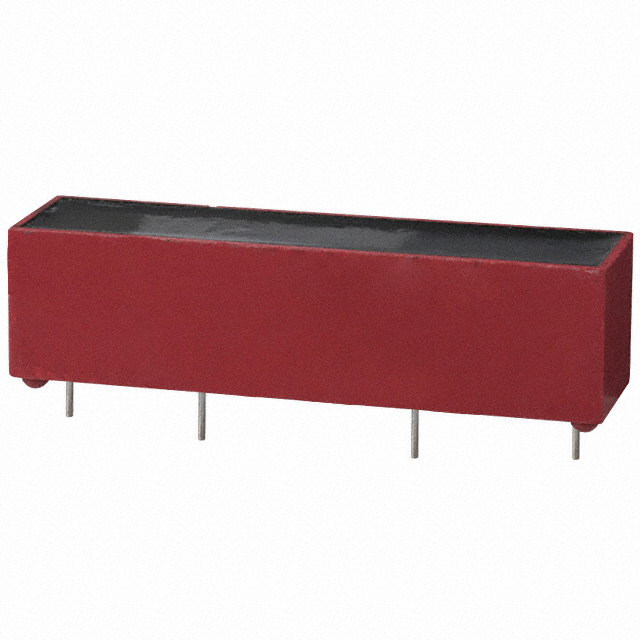

Same model may have multiple batches, images only for reference.
V23105A5003A201 TE Connectivity – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

V23105A5003A201

Part No V23105A5003A201
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY TELECOM DPDT 3A 12V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 3 A
Switching Voltage 250VAC, 220VDC - Max
Load - Max Switching 750VA, 660W
Coil Current 12.5 mA
Coil Type Non Latching
Termination Style PC Pin
Must Operate Voltage 9.6 VDC
Must Release Voltage 0.6 VDC
Operate Time 6 ms
Release Time 4 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Nickel (AgNi)
Approval Agency cURus
Relay Type Telecom
Package Tube
Supply and Demand Status Shortage
Win Source Part Number 1550367-V23105A5003A201
Ultra Librarian 3D Model Ultra Librarian V23105A5003A201 CAD Model
