Products specifications

Manufacturer Teccor Electronics
Win Source Part Number 1245435-S4065K
Manufacturer Homepage www.littelfuse.com/
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian S4065K CAD Model

Description

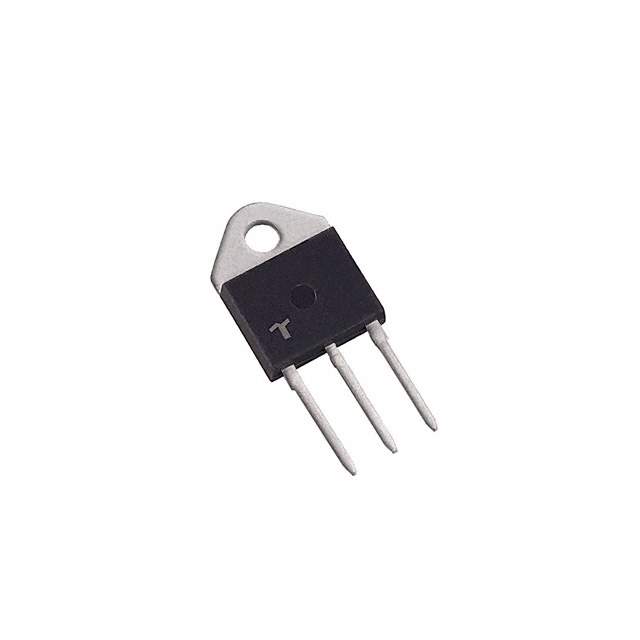

The S4065K is a silicon controlled rectifier (SCR) manufactured by Teccor Electronics (now part of Littelfuse). SCRs are unidirectional, three-terminal, solid-state switching devices that control current flow in electronic circuits. The S4065K is designed for general purpose switching and phase control applications.

Applications

  • Phase Control Circuits
  • Solid State Relays
  • Motor Speed Controls
  • Lighting Controls
  • Battery Chargers

Features

  • High Surge Current Capability: Withstands high surge currents without damage.
  • Glass Passivated Junctions: Provides high reliability and stability.
  • Sensitive Gate Triggering: Requires a small gate current to initiate conduction.
  • Voltage Ratings: Available in different voltage ratings to suit various applications.
  • RoHS Compliant: Compliant with the Restriction of Hazardous Substances Directive.

Benefits

  • Efficient Switching: Provides efficient and reliable switching control.
  • Robust Performance: Withstands harsh operating conditions.
  • Simplified Circuit Design: Sensitive gate triggering simplifies gate drive requirements.
  • Versatile Applications: Suitable for a wide range of applications requiring AC power control.
  • Environmentally Friendly: RoHS compliance ensures minimal environmental impact.

Technical Specifications

  • Voltage Rating: Typically 400V to 600V (depending on the specific sub-model)
  • On-State Current: Typically 4A
  • Gate Trigger Current: Typically 200 μA
  • Holding Current: Typically 5 mA
  • Surge Current: Up to 50A (non-repetitive)
  • Package: TO-220

The S4065K offers reliable performance for controlling AC power in various applications. Refer to the manufacturer's datasheet for detailed specifications and application guidelines.
