Product Overview: Texas Instruments 78ST105HC

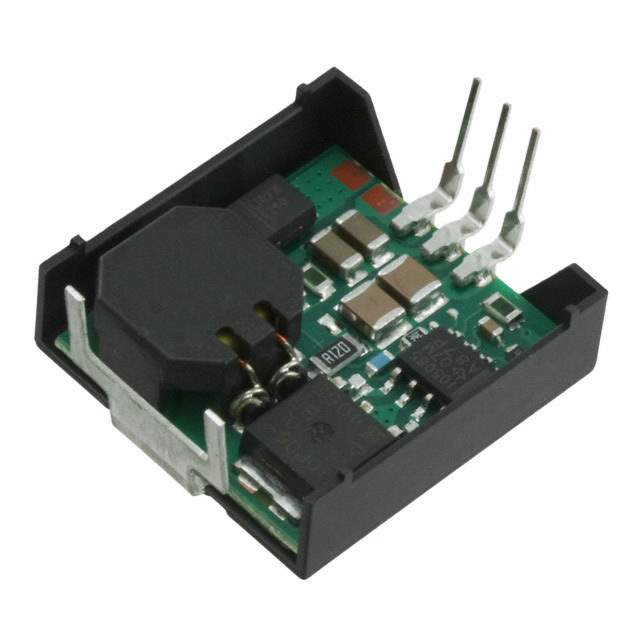

The Texas Instruments 78ST105HC is a highly efficient, integrated power module designed to deliver a fixed output voltage with exceptional accuracy and stability. This compact module is part of TI's 78ST series, renowned for its reliability and ease of use in various applications, including industrial controls, consumer electronics, and computer systems.

Key Features

• Fixed Output Voltage: The 78ST105HC provides a 5V DC output, which is a common requirement for digital circuits and microcontrollers.
• High Efficiency: With an advanced design focused on energy conservation, this power module operates with high efficiency, reducing heat generation and saving power.
• Integrated Heat Sink: The module comes with a built-in heat sink, which simplifies the thermal management of the system and enhances the overall reliability of the module.
• Compact Size: The small footprint of the 78ST105HC makes it an ideal solution for space-constrained applications.
• Plug-and-Play: Designed for ease of implementation, this module is ready to use without the need for external components, facilitating a quick and straightforward design process.

Electrical Specifications

• Input Voltage Range: The module accepts an input voltage range that is suitable for a variety of supply sources.
• Output Current: It can provide a steady output current, ensuring reliable performance for connected devices.
• Load Regulation: Maintains a consistent output voltage even with changes in the load, which is crucial for sensitive electronic equipment.
• Line Regulation: Exhibits minimal variation in output voltage with changes in input voltage, which is essential for fluctuating supply conditions.

Applications

The 78ST105HC is versatile and can be used in a multitude of applications. It is particularly well-suited for:

• Powering microcontrollers and digital systems
• Serving as a secondary regulated power source in larger systems
• Replacement for linear regulators where improved efficiency is desired
• Use in consumer electronics where space and energy efficiency are critical

With its robust design and reliable performance, the Texas Instruments 78ST105HC power module stands out as a top choice for designers looking for a ready-to-use, efficient power solution.
