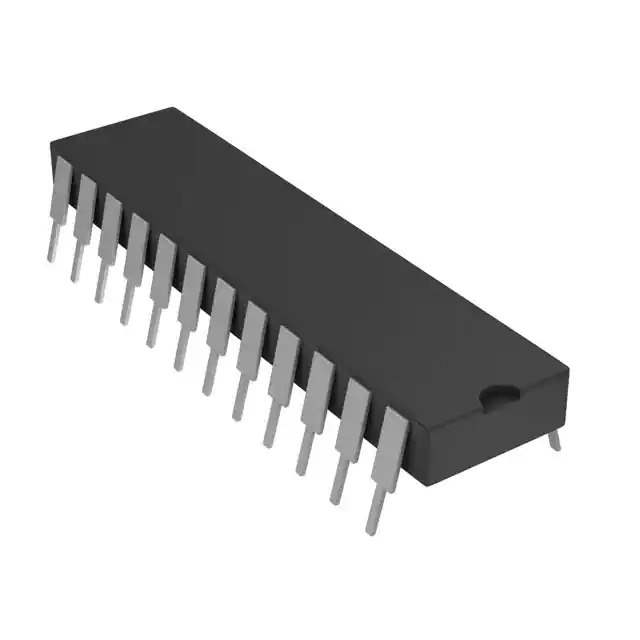

Products specifications

Category Integrated Circuits (ICs) - Logic - Shift Registers
Mfr Texas Instruments
Series 4000B
Package Tube
Product Status Obsolete
Logic Type Register, Bidirectional
Output Type Push-Pull
Number of Elements 1
Number of Bits per Element 8
Function Universal
Voltage - Supply 3V ~ 18V
Temperature Range - Operating -55°C ~ 125°C
Mounting Type Through Hole
Package / Case 24-DIP (0.600", 15.24mm)
Supplier Device Package 24-PDIP
Base Product Number CD4034
Standard Package 15 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 576948-CD4034BE
Ultra Librarian 3D Model Ultra Librarian CD4034BE CAD Model

Description

The CD4034BE is a high-performance CMOS 8-Stage Static Shift Register manufactured by Texas Instruments. Designed with precision and reliability in mind, this component is well-suited for a wide array of applications, ranging from data storage and transfer to signal processing and control systems.

Key Features

  • Versatile Functionality: The CD4034BE features an 8-stage serial input/parallel output register, allowing for flexible data handling in various configurations.
  • High-Speed Operation: With its CMOS technology, the device ensures fast data shifting capabilities, making it ideal for high-speed data acquisition and processing tasks.
  • Low Power Consumption: The low power requirements of the CD4034BE make it an excellent choice for battery-operated devices and energy-efficient systems.
  • Wide Operating Voltage: It operates over a broad voltage range from 3V to 18V, providing compatibility with a range of power supplies and enabling use in both digital and analog environments.
  • Direct Clear Function: The inclusion of a direct clear function allows for rapid resetting of the register, facilitating efficient operation and data management.

Applications

The CD4034BE is a versatile component that can be used in numerous electronic applications. It is commonly found in:

  • Serial-to-parallel data conversion systems
  • Remote control holding registers
  • Data storage and retrieval systems
  • Sequential control devices
  • Automotive systems
  • Instrumentation and test equipment

Quality and Reliability

Texas Instruments is known for its commitment to quality, and the CD4034BE is no exception. Each unit is rigorously tested to ensure it meets the high standards expected from a leading semiconductor manufacturer. The device's robust design ensures long-term reliability, making it a trusted choice for both commercial and industrial applications.

For detailed specifications, application notes, and support resources, customers are encouraged to visit the official Texas Instruments website or contact their customer service team.
