Same model may have multiple batches, images only for reference.

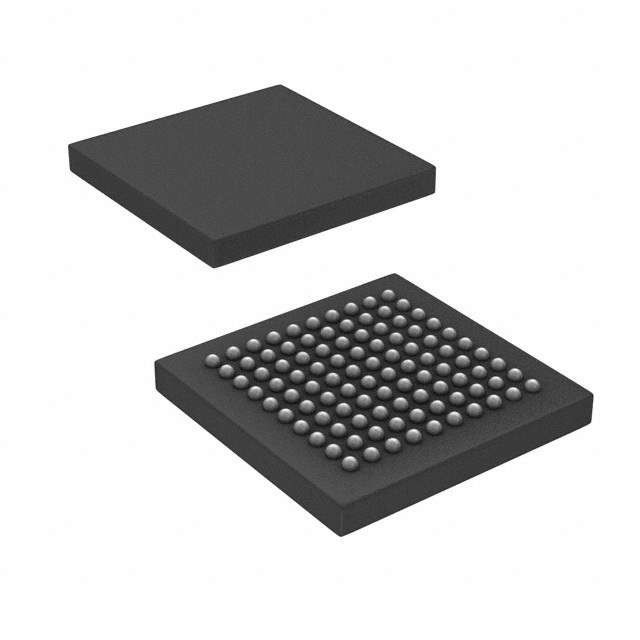

DDC264CKZAW Real Image
Same model may have multiple batches, images only for reference.

DDC264CKZAW

Part No DDC264CKZAW
Manufacturer Texas Instruments
Catalog Data Acquisition - Analog to Digital Converters (ADC)
Description IC ADC 20BIT 6.25KSPS 100NFBGA
Datasheet
DDC264CKZAW Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Tray
Status Active
Number of Bits 20
Sampling Rate 6k
Number of Inputs 64
Input Type Single Ended
Data Interface SPI
Configuration ADC
Number of A/D Converters 32
Reference Type External
Analog Supply Voltage 5V
Digital Supply Voltage 2.7 V to 5.25 V
Features Simultaneous Sampling
Temperature Range - Operating 0°C to 70°C
Case / Package 100-NFBGA (9x9)
Win Source Part Number 083214-DDC264CKZAW
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian DDC264CKZAW CAD Model

Description

DDC264CKZAW Description

The DDC264CKZAW is a versatile data acquisition system component, ideal for high-resolution measurements. It provides excellent accuracy and high-speed performance for demanding applications.

Features and Benefits

  • High Resolution: Provides high-resolution data conversion for detailed analysis.
  • Fast Conversion Rate: Capable of rapid data processing for real-time applications.
  • Robust Design: Ensures reliable operation in various environmental conditions.

Applications

  • Medical Imaging Equipment
  • Automated Test Systems
  • Geophysical Exploration Equipment
  • Photovoltaic Monitoring Systems
Additional details: The DDC264CKZAW is engineered for use in systems that demand high reliability and precision under challenging conditions, facilitating easy integration with existing technologies.
