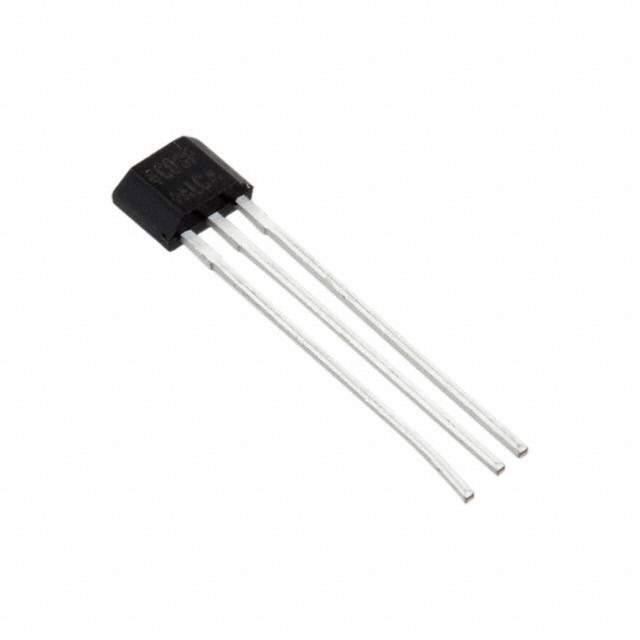

The DRV5013ADQLPGMQ1 is a digital latch Hall effect sensor designed and manufactured by Texas Instruments. This device offers a magnetic sensing solution with a digital latch output, specifically engineered for the automotive industry. It is ideal for applications that require accurate speed and position sensing, such as in anti-lock braking systems, gear tooth sensors, and tachometers.

Key Features

• Supply Voltage Range: The device operates over a broad supply voltage range of 2.5V to 38V, making it suitable for various automotive power systems.
• Operating Temperature: With an extended temperature range of -40°C to 125°C, it is reliable in harsh environmental conditions.
• Output: The DRV5013ADQLPGMQ1 provides a digital latch output, which holds its state until the magnetic field polarity is reversed.
• Power Consumption: It features a low-power consumption design, ensuring minimal drain on the vehicle's battery.
• Package: The sensor comes in a compact, surface-mount 3-pin SOT-23 package, suitable for space-constrained applications.
• Reverse Battery Protection: It is designed to withstand reverse battery connection, enhancing its robustness in automotive circuits.

Applications

The DRV5013ADQLPGMQ1 is versatile and can be used in a wide array of automotive applications, including:

• Position and speed sensing
• Electric motors (BLDC)
• Transmission systems
• Steering systems
• Brake systems

Quality and Reliability

As a product designed for the automotive industry, the DRV5013ADQLPGMQ1 meets stringent quality and reliability standards. It is AEC-Q100 qualified, ensuring performance under extreme automotive operating conditions. Its robust design also includes protection against electrostatic discharge (ESD) and other environmental stressors common in automotive applications.

Conclusion

The DRV5013ADQLPGMQ1 Hall effect sensor from Texas Instruments is a reliable and precise solution for automotive applications. Its wide voltage range, robust package, and low power consumption make it an excellent choice for designers seeking to enhance the performance and safety of automotive systems.
