LM2596SX-5.0

Part No LM2596SX-5.0
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - DC DC Switching Regulators
Description IC REG BUCK 5V 3A TO263-5
Datasheet
LM2596SX-5.0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Purpose Step-Down
Topology Buck
Output Type Fixed
Number of Outputs 1
Minimum Input Voltage 4.5V
Maximum Input Voltage 40V
Nominal Output Voltage (Min/Fixed) 5V
Output Current 3A
Frequency - Switching 150kHz
Synchronous Rectifier No
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package DDPAK/TO-263-5
Win Source Part Number 089578-LM2596SX-5.0
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Power Management, Industrial
Family Name LM2596
Introduction Date December 01, 1997
ECCN EAR99
Country of Origin Malaysia
Halogen Free Not Compliant
Estimated EOL Date Obsolete

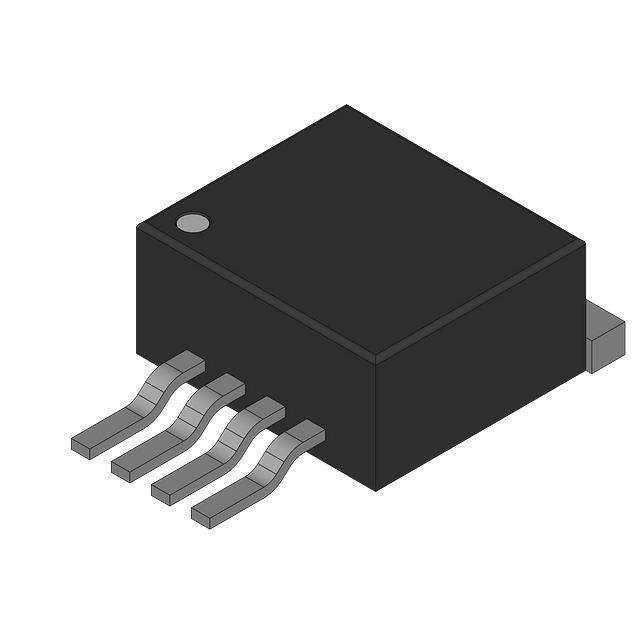

Ultra Librarian 3D Model Ultra Librarian LM2596SX-5.0 CAD Model

Description

The LM2596SX-5.0 from Texas Instruments is a high-performance step-down switching regulator that offers a highly efficient, compact, and durable solution for a wide range of voltage regulation tasks.

  • Switching Frequency: 150 kHz
  • Input Voltage Range: 4.5 V to 40 V
  • Load: 3-A
  • Protection: Thermal shutdown and current limit protection
  • Efficiency: Up to 90%
  • Package: TO-263
