The LM2825N-3.3/NOPB is a versatile integrated power supply module designed and manufactured by Texas Instruments. This compact, high-efficiency power solution is ideal for a wide range of applications, including consumer electronics, automotive systems, and industrial equipment.

Key Features

• Output Voltage: The device provides a fixed output voltage of 3.3V, which is a common requirement for digital circuits and low-power microcontrollers.
• Output Current: It is capable of delivering up to 1A of continuous output current, making it suitable for powering small to medium-sized loads.
• High Efficiency: The LM2825N-3.3/NOPB is designed for high efficiency, which helps to minimize heat generation and power loss, thus extending the lifetime of the product it powers.
• Simple Design: The module requires minimal external components, facilitating a simple and straightforward design process for engineers.
• Protection Features: It includes built-in thermal shutdown and current limit protection to safeguard the device and the application against over-temperature and over-current conditions.

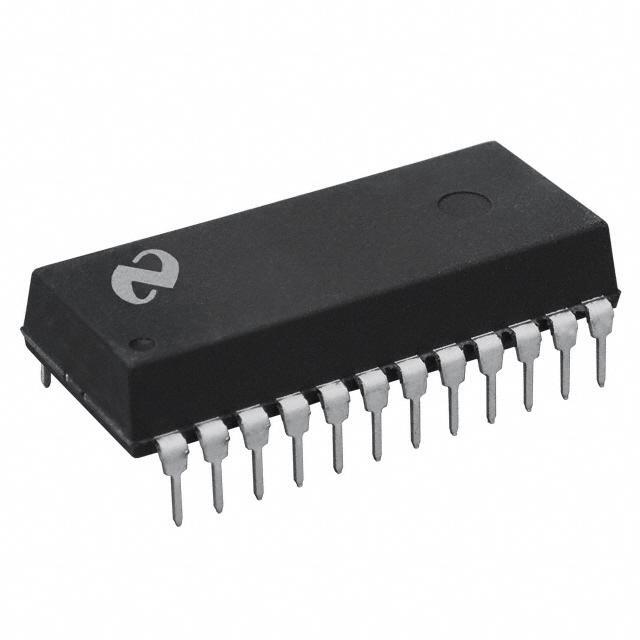

• Package: The device is available in a through-hole, 24-pin DIP (Dual In-line Package) that is easy to handle and integrate into various circuit designs.
• Lead-Free and RoHS Compliant: The LM2825N-3.3/NOPB is fully compliant with RoHS (Restriction of Hazardous Substances) directives, making it an environmentally friendly choice.

Applications

The LM2825N-3.3/NOPB's robustness and versatility make it suitable for a wide array of applications, including:

• Portable devices
• Embedded systems
• Power supplies for digital systems
• Automotive electronics
• Industrial control systems

The LM2825N-3.3/NOPB from Texas Instruments provides a reliable, efficient, and easy-to-use power supply solution for designers looking to streamline their power management tasks. Its combination of features, protections, and compliance with environmental standards makes it an excellent choice for modern electronic applications.
