The LM5122MH/NOPB is a versatile and powerful synchronous boost controller designed by Texas Instruments to cater to a wide range of applications that require high voltage outputs from low voltage sources. As a member of the reputable Texas Instruments product line, the LM5122MH/NOPB is engineered to deliver exceptional performance and reliability.

Key Features

• Versatile Input Range: The controller operates from an input voltage range of 3V to 65V, making it suitable for a variety of applications, including automotive, industrial, and telecommunications.
• Wide Output Voltage: It is capable of producing an output voltage up to 100V, providing flexibility for high voltage applications.
• High Efficiency: The synchronous rectification feature ensures high efficiency, which is critical for battery-operated and energy-sensitive devices.
• Adjustable Switching Frequency: The switching frequency of the LM5122MH/NOPB is adjustable from 50 kHz to 1 MHz, allowing designers to optimize the size of external components and performance for their specific application.
• Robust Protection Features: It includes cycle-by-cycle current limit, thermal shutdown, and under-voltage lockout, ensuring safe operation under abnormal operating conditions.

Applications

The LM5122MH/NOPB is ideal for a range of applications, such as:

• Automotive infotainment and telematics
• Industrial control systems
• Telecommunications power systems
• Power conditioners and inverters

Package and Quality

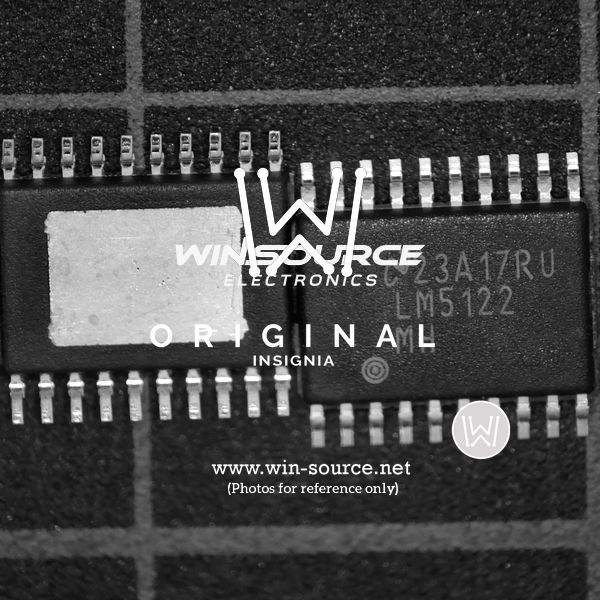

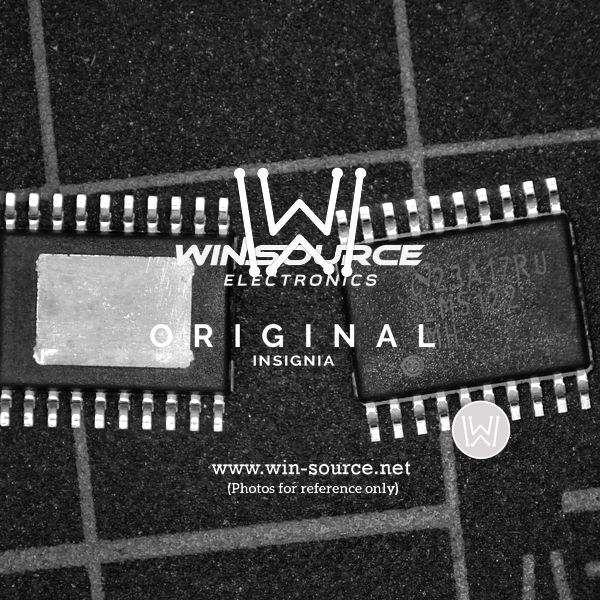

The device is offered in a 20-pin TSSOP (Thermally Enhanced Thin Shrink Small Outline Package) with a thermally enhanced pad. The NOPB designation indicates that this product is lead-free, which is in compliance with the RoHS directive, making it a suitable choice for eco-friendly and lead-free manufacturing processes.

Conclusion

Overall, the LM5122MH/NOPB from Texas Instruments is a high-performance, feature-rich synchronous boost controller that provides a robust solution for generating high voltages from lower voltage inputs. Its wide input range, high output capability, and extensive protection features make it a versatile choice for designers looking to create efficient and reliable power supply systems.
