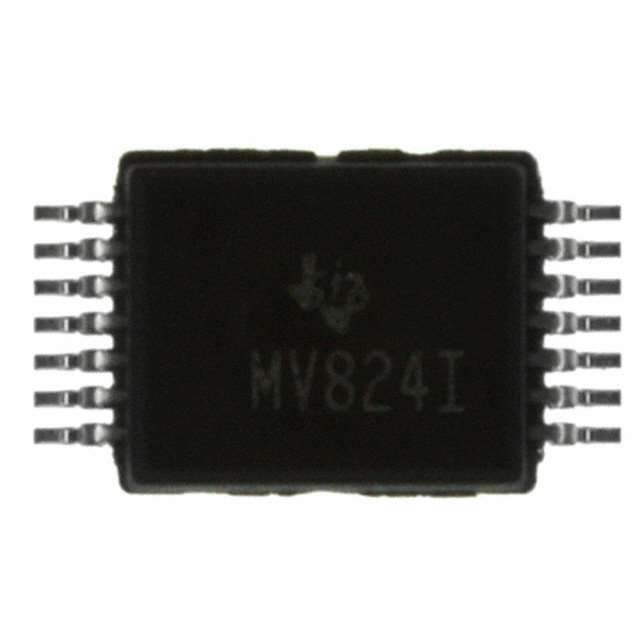

LMV824IDGVR

Part No LMV824IDGVR
Manufacturer Texas Instruments
Catalog Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description LOW-VOLTAGE RAIL-TO-RAIL OUTPUT OPERATIONAL AMPLIFIERS
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Texas Instruments
Packaging Reel - TR
Part Status Obsolete(EOL)
Amplifier Type General
Number of Circuits 4
Output Type Rail-to-Rail
SR - Slew Rate 1.9 V/μs
GBP - Gain Bandwidth Product 5.5MHz
Current - Input Bias 40nA
Voltage - Input Offset 1mV
Operating Supply Current 1mA
Output Current per Channel 45mA
Dual Supply Voltage (±) 2.5 V ~ 5.5 V, ±1.25 V ~ 2.75 V
Operating Temperature Range -40°C ~ 125°C
Mounting SMD
Package 14-TFSOP (0.173", 4.40mm Width)
Manufacturer Package 14-TVSOP
Win Source Part Number 1202288-LMV824IDGVR
Manufacturer Homepage www.ti.com
Popularity Medium
Supply and Demand Status Limited
Family Name LMV824
Introduction Date August 01, 2003
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian LMV824IDGVR CAD Model

Description

Overview of Texas Instruments LMV824IDGVR

The LMV824IDGVR from Texas Instruments is a high-performance, low-power operational amplifier that is well-suited for a wide range of applications. This op-amp is designed to offer a balance of low-voltage operation and low noise, making it an ideal choice for battery-powered devices and signal conditioning applications.

Key Features

  • Low Voltage Operation: The LMV824IDGVR operates at a supply voltage range of 2.7V to 5.5V, which allows it to be used in systems where power efficiency is crucial.
  • Low Noise: With a low input voltage noise density, this operational amplifier is perfect for applications that require a high signal-to-noise ratio.
  • Rail-to-Rail Output: The rail-to-rail output capability provides increased dynamic range, which is especially beneficial in low-voltage applications.
  • Input Common-Mode Voltage Range: The input common-mode voltage range includes ground, making the LMV824IDGVR suitable for single-supply operations.
  • Low Input Bias Current: The device features a low input bias current, which is essential for high-impedance sensor interfaces and precision applications.
  • Enhanced ESD Protection: Enhanced Electrostatic Discharge (ESD) protection ensures the op-amp's reliability and robustness in harsh environments.
  • Small Package: The LMV824IDGVR comes in a small, thin-shrink small-outline package (TSSOP), which is ideal for space-constrained applications.

Applications

The versatility of the LMV824IDGVR makes it a suitable choice for a variety of applications, including:

  • Portable and battery-operated devices
  • Audio and video signal processing
  • Sensor signal conditioning
  • Active filters and amplifiers
  • Data acquisition systems
  • Medical instrumentation
  • Test and measurement equipment

The LMV824IDGVR operational amplifier by Texas Instruments is a reliable and efficient solution for designers looking to improve performance while maintaining power efficiency in their electronic designs. Its small footprint, combined with its robust feature set, makes it an excellent choice for a multitude of applications where precision and power conservation are key.
