The LMX2531LQ2820E/NOPB is a high-performance, low-power frequency synthesizer system from Texas Instruments that integrates a delta-sigma fractional-N PLL (phase-locked loop), a VCO (voltage-controlled oscillator), and various output dividers. This advanced device is designed to generate a stable, precise frequency signal for use in wireless communication systems, such as GSM, WCDMA, LTE, and other RF applications.

Key Features

• High Frequency Performance: The LMX2531LQ2820E/NOPB boasts an impressive frequency range, capable of generating frequencies from 400 MHz to 2.5 GHz, making it suitable for a wide array of RF applications.
• Low Phase Noise: The device is engineered to produce a signal with very low phase noise, which is crucial for maintaining signal integrity in communication systems.
• Flexible Output Options: It features multiple output dividers that allow for a broad range of output frequencies, providing versatility in its application across different products.
• Programmable Charge Pump: The synthesizer includes a programmable charge pump and a hardware and software power-down mode, which contributes to its low-power consumption.
• Integrated VCO: The inclusion of an on-chip VCO minimizes the need for external components, thus reducing the overall design footprint and complexity.
• Serial Interface: The device can be programmed through a three-wire serial interface, allowing for easy integration into system designs.

Applications

The LMX2531LQ2820E/NOPB is ideal for a variety of applications, including but not limited to:

• Wireless Infrastructure (GSM, WCDMA, LTE)
• Wireless LANs
• Cable Modems
• Set-Top Boxes
• General RF Synthesis

Package and Quality

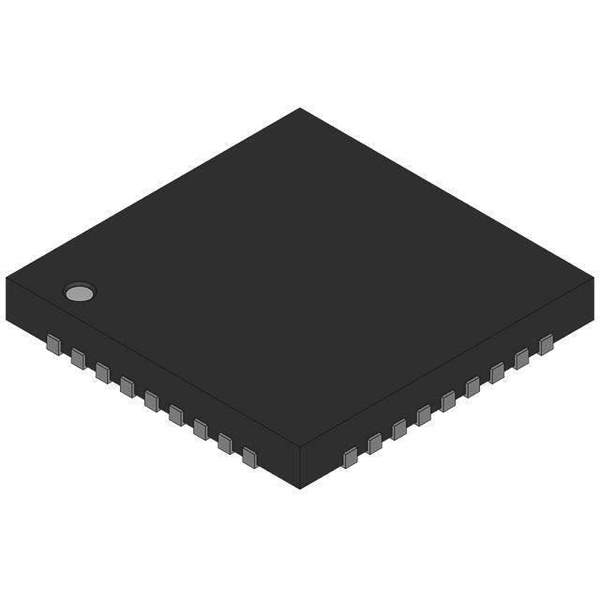

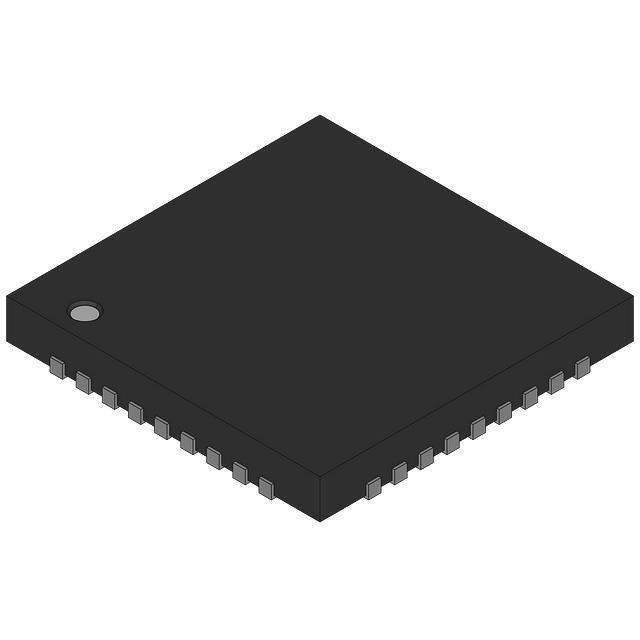

This synthesizer is available in a QFN (quad flat no-leads) package, which is suitable for space-constrained applications. The part number LMX2531LQ2820E/NOPB indicates that this product is provided in a lead-free, environmentally friendly package and is compliant with the RoHS (Restriction of Hazardous Substances) directive.
