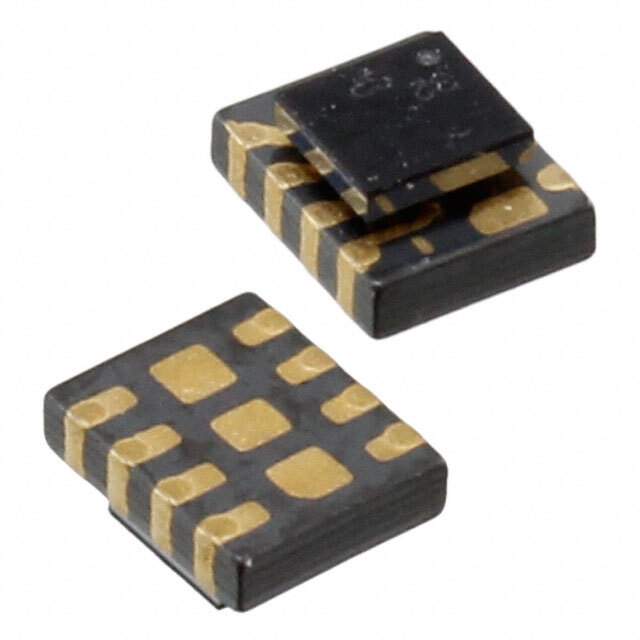

Same model may have multiple batches, images only for reference.

LMZ10501SILT

Name: LMZ10501SILT
Brand: Texas Instruments
SKU: 187710
Availability: InStock
Rating: 4.91 (48 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	LMZ10501SILT
Manufacturer	Texas Instruments
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC/DC CONVERTER 0.6-3.6V 1A
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Texas Instruments
Standard Package	1
Category	Power Supplies - Board Mount
Family	DC DC Converters
Series	SIMPLE SWITCHER Nano
Packaging	Reel
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	2.7V
Voltage - Input (Max)	5.5V
Voltage - Output 1	0.6 ~ 3.6 V
Current - Output (Max)	1A
Applications	ITE (Commercial)
Features	OCP OTP SCP UVLO
Mounting Style	SMD/SMT
Package	8-LLP
Size / Dimension	0.12" L x 0.10" W x 0.06" H (3.0mm x 2.6mm x 1.5mm)
Operating Temperature Range	-40°C ~ 125°C
Efficiency	95%
Catalog	SIMPLE SWITCHER LMZ10501 Nano Power Modules Series
Win Source Part Number	083512-LMZ10501SILT
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Limited
Application Field	Used in Power Management
Ultra Librarian 3D Model	Ultra Librarian LMZ10501SILT CAD Model

Alternative Products

Description

The LMZ10501SILT is a high-performance, efficient power module from Texas Instruments, designed for space-constrained applications.

Input Voltage Range: 2.7V to 5.5V
Output Current: 1A
Adjustable Output Voltage: 0.8V to 3.6V
Efficiency: Up to 93%
Features: Over-temperature protection, under-voltage lockout, soft-start, Power Good (PG) output
