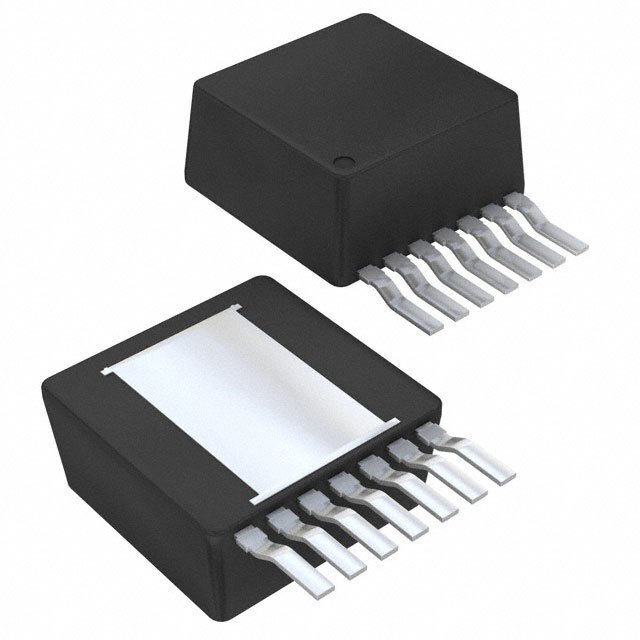

LMZ14201TZX-ADJ/NOPB

Part No LMZ14201TZX-ADJ/NOPB
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description IC BUCK SYNC ADJ 1A TO-PMOD-7
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Type Non-Isolated PoL Module
Number of Outputs 1
Minimum Input Voltage 6V
Maximum Input Voltage 42V
Nominal Output Voltage 1 0.8 to 6 V
Current - Output (Max) 1A
Applications ITE (Commercial)
Features UVLO
Temperature Range - Operating -40°C to 125°C
Efficiency 90%
Mounting SMD (SMT)
Dimension 0.40" L x 0.39" W x 0.18" H (10.2mm x 9.9mm x 4.6mm)
Win Source Part Number 082934-LMZ14201TZX-ADJ
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LMZ14201TZX-ADJ/NOPB CAD Model

Description

The LMZ14201TZX-ADJ/NOPB is a high-performance power module manufactured by Texas Instruments, a renowned leader in semiconductor solutions. This product is a part of the Simple Switcher® series, which is a range of easy-to-use power modules designed to simplify the process of designing power supply systems.

The LMZ14201TZX-ADJ/NOPB is a step-down DC/DC power module that operates at an input voltage range of 6V to 42V. It is capable of delivering an adjustable and highly accurate output voltage from 0.8V to 6V at a maximum output current of 1A. This makes it suitable for a wide range of applications, including but not limited to, telecommunications equipment, industrial equipment, and automotive systems.

One of the notable features of the LMZ14201TZX-ADJ/NOPB is its high efficiency. It uses a synchronous rectification technique which helps to reduce power loss, thus improving overall system efficiency. Additionally, it has a low output ripple which ensures a stable and clean power supply to the load.

The LMZ14201TZX-ADJ/NOPB is designed with a host of protection features to ensure the safety and reliability of your system. It includes over-temperature protection, under-voltage lockout, and over-current protection. These features help to prevent damage to the module and the system in case of abnormal operating conditions.

This power module comes in a compact, easy-to-solder HTSSOP package with an exposed pad. This not only helps in easy installation but also aids in thermal management, thus enhancing the reliability and longevity of the module.

The LMZ14201TZX-ADJ/NOPB is RoHS compliant and is free from lead, bromine, and antimony, making it an environmentally friendly choice.

In summary, the LMZ14201TZX-ADJ/NOPB from Texas Instruments is a high-efficiency, adjustable output voltage power module that offers a simple, compact, and reliable solution for your power supply design needs. Its superior features and protections make it a versatile choice for a multitude of applications.
