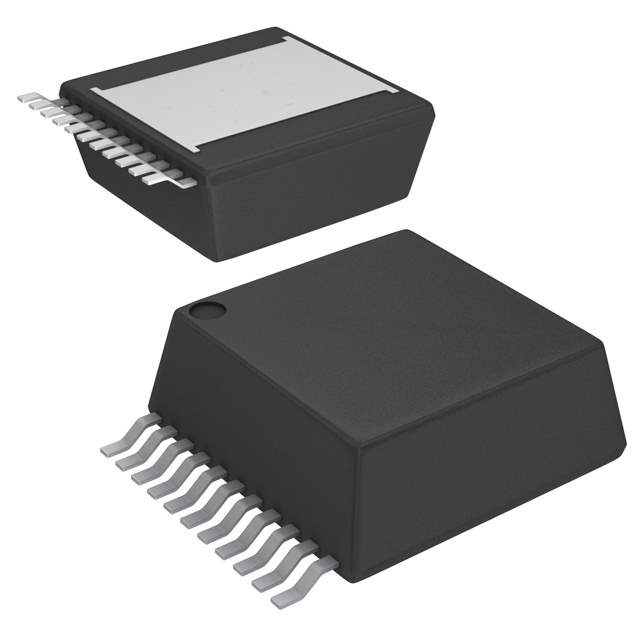

Product Overview: LMZ22010TZE/NOPB

The LMZ22010TZE/NOPB is a high-performance, easy-to-use power module from Texas Instruments, designed to meet a wide range of power requirements in various electronic applications. This innovative module is part of the SIMPLE SWITCHER® family and provides an efficient, compact, and reliable power management solution.

Key Features


• Integrated Power Solution: The LMZ22010TZE/NOPB combines a DC/DC converter, inductor, and support components into a single package, simplifying the design process and reducing external component count.

• High Efficiency: With an efficiency of up to 95%, this power module ensures minimal heat generation and maximizes battery life in portable applications.

• Wide Input Voltage Range: It operates from an input voltage range of 6V to 20V, making it versatile for various systems and ensuring compatibility with multiple power sources.

• Adjustable Output Voltage: The output voltage can be adjusted from 0.8V to 6V, allowing for use in a broad array of applications requiring different voltage levels.

• Large Output Current: Capable of delivering up to 10A of output current, this module can easily power high-current devices.

• Thermal Performance: The power module is designed with excellent thermal performance in mind, featuring an exposed pad for enhanced heat dissipation.

• Robust Protection Features: It includes over-temperature and over-current protection, ensuring reliable operation and longevity of the module and the end application.

Applications

The LMZ22010TZE/NOPB is ideal for a wide range of applications, including but not limited to:


• Telecommunications Infrastructure

• Industrial Equipment

• Networking Equipment

• Consumer Electronics

• Test and Measurement Systems

Quality and Reliability

As with all Texas Instruments products, the LMZ22010TZE/NOPB is manufactured to the highest quality standards, ensuring reliable performance in even the most demanding conditions. Its robust design and built-in protection features contribute to a long operational lifespan, making it a preferred choice for designers and engineers looking for a dependable power solution.

The LMZ22010TZE/NOPB from Texas Instruments represents a blend of performance, convenience, and reliability, providing an optimal power management solution for a multitude of electronic applications.
