Same model may have multiple batches, images only for reference.

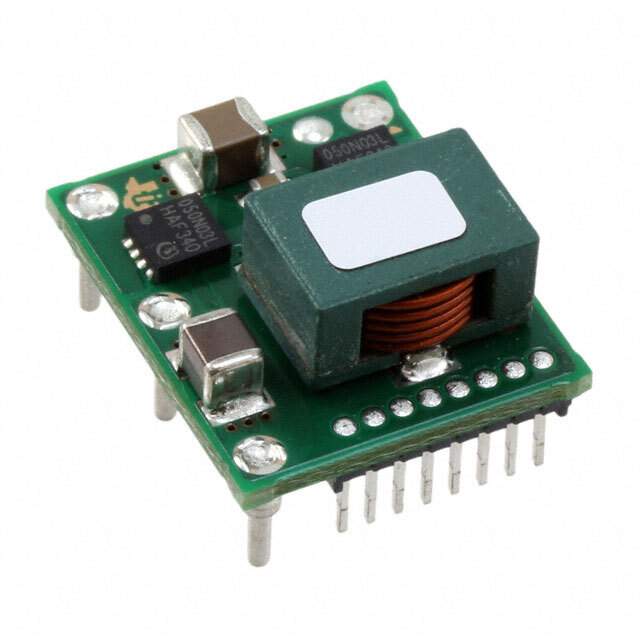

PTD08A010WAD Real Image
Same model may have multiple batches, images only for reference.

PTD08A010WAD

Part No PTD08A010WAD
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description MODULE DGTL POWERTRAIN 10A 12DIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Texas Instruments
Standard Package 36
Category Power Supplies - Board Mount
Family DC DC Converters
Series Powertrain
Packaging Tray
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 4.75V
Voltage - Input (Max) 14V
Voltage - Output 1 0.7 ~ 3.6 V
Current - Output (Max) 10A
Applications ITE (Commercial)
Mounting Style Through Hole
Package 12-DIP Module
Size / Dimension 0.75" L x 0.62" W x 0.32" H (19.1mm x 15.7mm x 8.1mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 95%
Power (Watts) - Max 36W
Catalog Powertrain Series
Win Source Part Number 081179-PTD08A010WAD
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PTD08A010WAD CAD Model

Description

The PTD08A010WAD is a highly advanced, innovative product from Texas Instruments, a globally recognized leader in semiconductor technology.

  • Series: PTD series.
  • Type: Non-isolated power module.
  • Feature: Adjustable output voltage.
  • Rating: 10A rated DC/DC converter module.
  • Input Voltage Range: 4.5V to 14V.
  • Output Voltage Range: Adjustable from 0.6V to 5.5V.
  • Efficiency: Up to 96% typical.
  • Protection: Over-temperature protection and under-voltage lockout.
  • Sequencing: Auto-Track sequencing feature.
  • Control: Enable pin for easy on/off control.
  • Package: Compact, surface-mount package.
