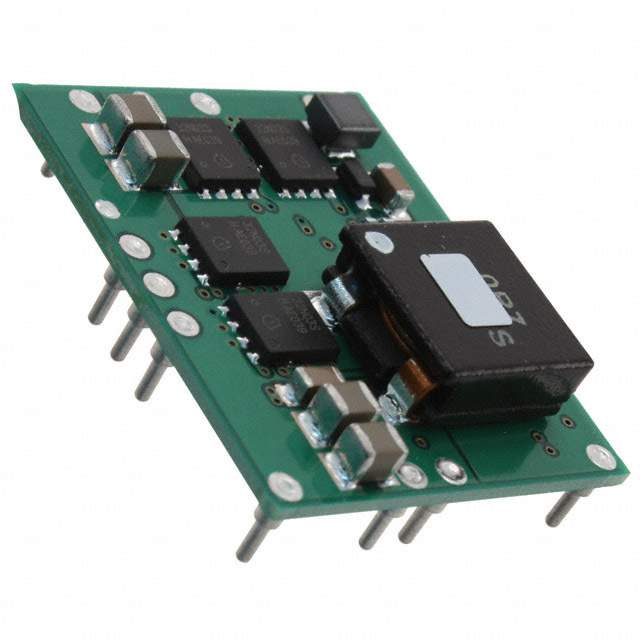

PTH03030WAH Real Image
Same model may have multiple batches, images only for reference.

PTH03030WAH

Part No PTH03030WAH
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description MODULE PIP .8-2.5V 30A T/H 13DIP
Datasheet
PTH03030WAH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount
Family DC DC Converters
Manufacturer Texas Instruments
Series PTH03030W
Packaging Tray
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 2.95V
Voltage - Input (Max) 3.65V
Voltage - Output 1 0.8 ~ 2.5 V
Current - Output (Max) 30A
Applications ITE (Commercial)
Mounting Style Through Hole
Package 13-DIP Module
Size / Dimension 1.37" L x 1.12" W x 0.35" H (34.8mm x 28.4mm x 8.9mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 93%
Power (Watts) - Max 75W
Win Source Part Number 026934-PTH03030WAH
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PTH03030WAH CAD Model

Description

The PTH03030WAH is a high-performance, non-isolated power module manufactured by Texas Instruments, a leading global semiconductor company that designs, manufactures, and sells analog and embedded processing chips.

  • Output Voltage: Adjustable from 0.8V to 1.8V
  • Input Voltage Range: 3.0V to 5.5V
  • Maximum Output Current: 15A
  • Efficiency: Up to 96%
  • Protective Features: Over-temperature protection, under-voltage lockout, and output over-current protection
  • Package: Compact, surface-mount package
  • Compliance: RoHS compliant
