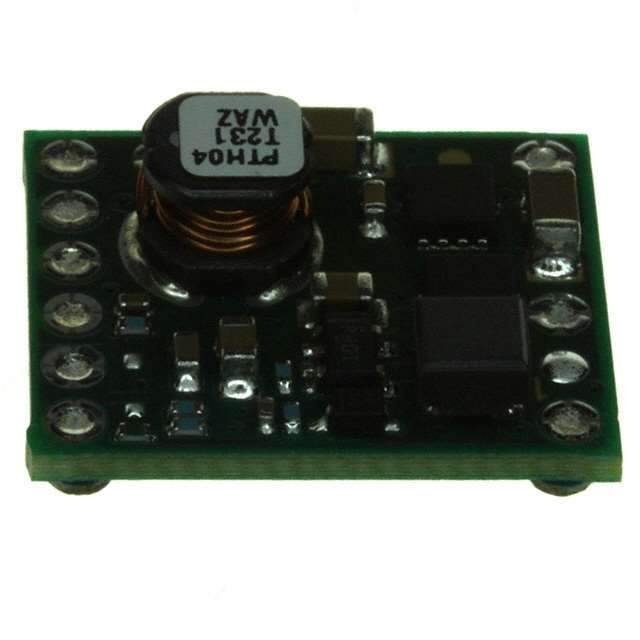

The PTH04T231WAZ is a high-performance, adjustable non-isolated module with PowerTrain™ technology from Texas Instruments. This advanced power solution is designed to deliver excellent power density and efficiency for a wide range of applications, including telecommunications, computing, and industrial systems.
Key Features
- Input Voltage Range: The device operates with an input voltage range of 4.5V to 14V, making it versatile for various power supply scenarios.
- Output Voltage Range: It offers an adjustable output voltage range from 0.69V to 5.5V, allowing for precise voltage regulation tailored to the specific needs of the application.
- High Efficiency: With an efficiency of up to 96%, the PTH04T231WAZ ensures minimal power loss and heat generation, enhancing system reliability.
- Output Current: The module is capable of delivering up to 6A of output current, suitable for high-performance applications requiring substantial power delivery.
- Power Density: The PTH04T231WAZ boasts an exceptional power density, thanks to Texas Instruments' PowerTrain™ technology, which integrates the inductor into the module.
Applications
- Telecommunications Equipment
- Networking Hardware
- Server and Storage Systems
- Industrial and Test Equipment
Product Benefits
The PTH04T231WAZ module from Texas Instruments is designed for easy implementation and minimal external components, simplifying the design and reducing time to market. Its small footprint and surface-mount package make it ideal for space-constrained applications. The built-in features such as over-current protection, under-voltage lockout, and thermal shutdown contribute to the overall durability and longevity of the product.
Technical Specifications
Parameter
Value
Manufacturer
Texas Instruments
Product Category
Non-Isolated DC/DC Converters
Output Type
Adjustable
Max Output Current
6A
Efficiency
Up to 96%
Package / Case
Surface Mount
Operating Temperature
-40°C to +85°C
