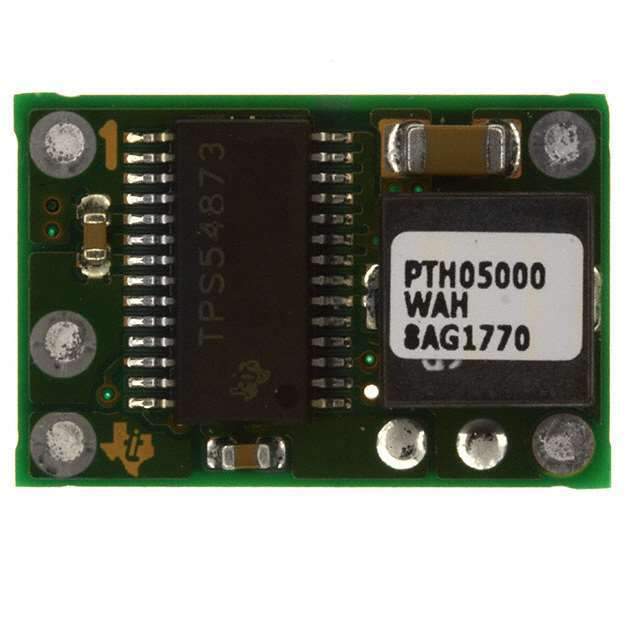

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer Texas Instruments
Standard Package 56
Category Power Supplies - Board Mount
Family DC DC Converters
Series PTH05000W
Packaging Tray
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 0.9 ~ 3.6 V
Current - Output (Max) 6A
Applications ITE (Commercial)
Mounting Style Through Hole
Package 5-DIP Module
Size / Dimension 0.75" L x 0.50" W x 0.34" H (19.1mm x 12.7mm x 8.6mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 92%
Power (Watts) - Max 21.6W
Catalog PTH05000W Series
Win Source Part Number 082091-PTH05000WAD
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PTH05000WAD CAD Model

Description

The PTH05000WAD is an innovative and high-performance power module from Texas Instruments, a leading manufacturer in the global semiconductor industry.

  • Adjustable Output Voltage: 0.8V to 3.6V
  • Input Voltage Range: 5V to 14V
  • Efficiency: Up to 96%
  • Output Current: Up to 6A
  • Over-Temperature Protection: Yes
  • Over-Current Protection: Yes
  • Auto-Track Sequencing: Yes
  • On/Off Inhibit Control: Yes
