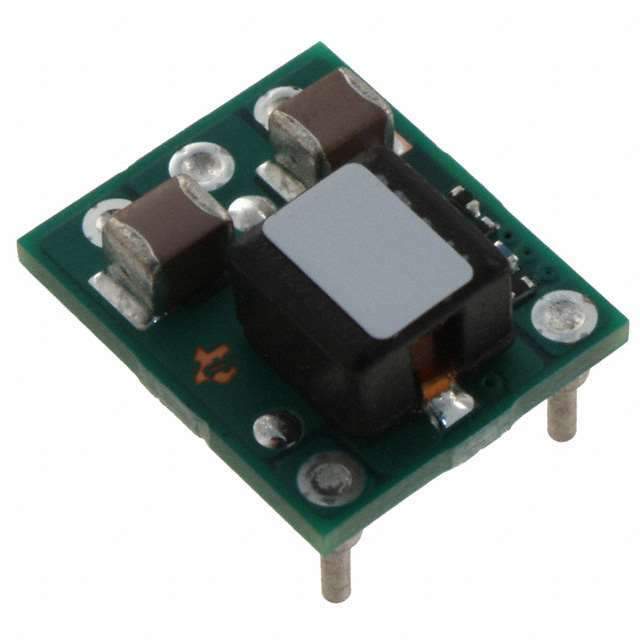

PTH08080WAD

Part No PTH08080WAD
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 0.9-5.5V / Non-Isolated PoL Module DC DC Converter 1 Output 0.9 ~ 5.5V 2.25A 4.5V - 18V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Texas Instruments
Series PTH08080W
Package Tray
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 18V
Voltage - Output 1 0.9 ~ 5.5V
Current - Output (Max) 2.25A
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 93.5%
Mounting Type Through Hole
Package / Case 5-DIP Module
Dimension 0.60" L x 0.50" W x 0.32" H (15.2mm x 12.7mm x 8.1mm)
Base Product Number PTH08080
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8543.70.9860
Other Names PTH08080WAD-ND,296-32715
Standard Package 90
Win Source Part Number 1033253-PTH08080WAD
Ultra Librarian 3D Model Ultra Librarian PTH08080WAD CAD Model

Description

The PTH08080WAD is a high-performance, adjustable non-isolated power module from Texas Instruments. Designed with flexibility and ease of use in mind, this module is part of the PTH08080 series, renowned for its exceptional efficiency and thermal performance. The PTH08080WAD is particularly suitable for a wide range of applications, including but not limited to telecommunications, computing, and industrial systems where adjustable output voltage and high output current are required.

Key Features

  • Adjustable Output Voltage: The PTH08080WAD offers an adjustable output voltage range from 0.9V to 5.5V, allowing for high flexibility in various application scenarios. This feature ensures that the module can power a broad spectrum of devices requiring different voltage levels.
  • High Efficiency: With an efficiency of up to 95%, this power module minimizes power loss, ensuring that the system operates cooler and more reliably over its lifetime.
  • Wide Input Voltage Range: The module accepts an input voltage range from 4.5V to 14V, providing versatility in different power environments and systems with varying supply voltages.
  • High Output Current: Capable of delivering up to 2.25A of output current, the PTH08080WAD can easily support applications with high power demands.
  • On/Off Inhibit: The power module includes an on/off inhibit control feature, allowing the user to control the power sequence and conserve energy when the module is not in use.
  • Thermal Shutdown: Integrated thermal shutdown functionality ensures protection against overheating, thereby safeguarding the module and the system it powers.
  • Under-Voltage Lockout (UVLO): The UVLO feature prevents the module from operating at insufficient voltages, which could lead to unreliable performance or damage.
  • Small Footprint: The compact size of the PTH08080WAD module makes it an excellent choice for space-constrained applications.

Applications

The flexibility and robustness of the PTH08080WAD power module make it an ideal choice for a variety of applications, such as:

  • Telecommunication equipment
  • Networking hardware such as routers and switches
  • Industrial systems and controls
  • Computing and data storage systems
  • Point-of-load power architectures

With its comprehensive set of features and reliable performance, the PTH08080WAD from Texas Instruments stands out as a versatile power solution for designers looking to enhance the efficiency and flexibility of their systems.
