Product Overview: Texas Instruments SN6505BDBVT

The SN6505BDBVT is a high-performance, low-noise, low-EMI push-pull transformer driver specifically designed for small form factor, isolated power supplies. Manufactured by Texas Instruments, this integrated circuit (IC) is part of their power management line of products. It operates with an input voltage range of 2.25V to 5.5V, making it suitable for a variety of applications that require efficient power conversion and isolation.

With its ability to drive a low-profile, center-tapped transformer from a single 3.3V or 5V supply, the SN6505BDBVT is an excellent choice for providing isolated power in industrial, medical, telecom, and other applications. Its push-pull topology delivers low power dissipation and high efficiency, which is crucial for systems that need to minimize thermal issues and increase reliability.

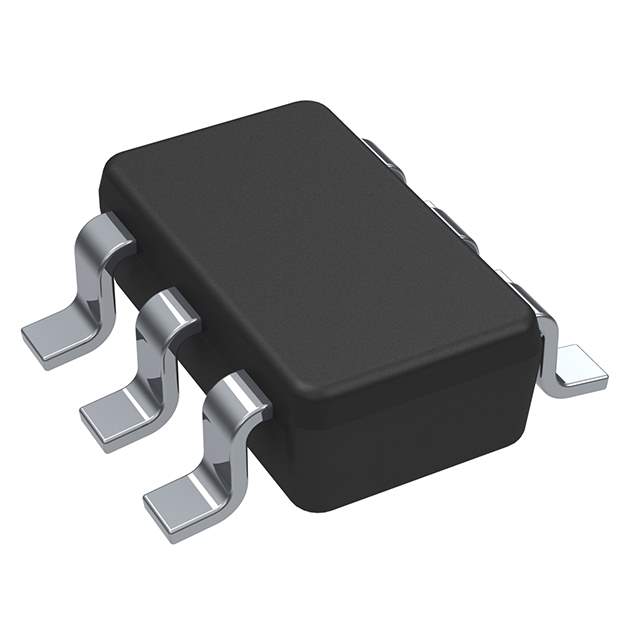

The SN6505BDBVT comes in a compact SOT-23-5 package, ensuring a minimal footprint on the PCB and making it ideal for space-constrained applications. The device incorporates an oscillator, control circuitry, power switch, and other necessary components to create a complete solution with minimal external components.

Key features of the SN6505BDBVT include:

• Integrated push-pull driver for transformers
• Input voltage range from 2.25V to 5.5V
• Up to 1 MHz switching frequency for efficient power transfer
• Soft start feature to prevent inrush current during startup
• Thermal shutdown and overcurrent protection for safe operation
• Low-power standby mode for energy-saving applications

The device's high-frequency operation allows the use of small, low-cost transformers, reducing the overall solution size and bill of materials. The SN6505BDBVT also features a soft-start capability that limits inrush current and ensures a smooth startup, while built-in protection features like thermal shutdown and overcurrent protection enhance the safety and durability of the end application.

For designers looking for an isolated power supply solution that combines performance, efficiency, and compactness, the SN6505BDBVT from Texas Instruments is an excellent option that delivers reliable power management in a small package.
