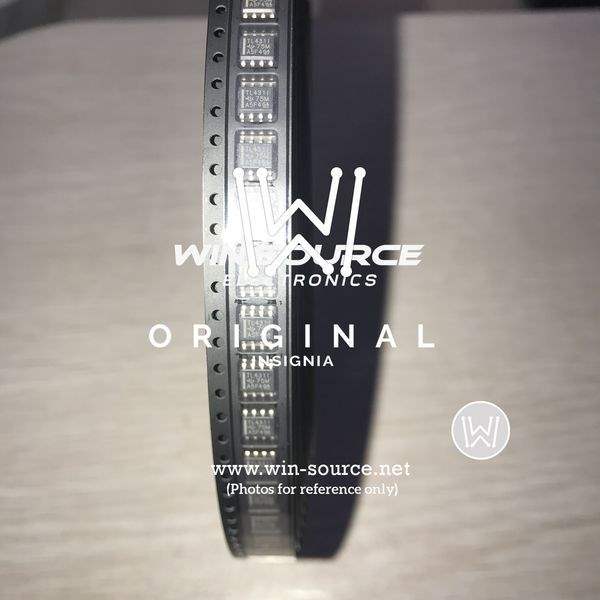

Products specifications

Categories Integrated Circuits (ICs)
Manufacturer Texas Instruments
Packaging Reel - TR
Reference Type Shunt
Output Type Adjustable
Output Voltage 2.495V
Output Voltage MAX 36V
Output Current 100mA
Tolerance ±2.2%
Current - Cathode 1mA
Operating Temperature Range -40°C ~ 85°C (TA)
Mounting SMD
Package 8-SOIC (0.154", 3.90mm Width)
Manufacturer Package 8-SOIC
Win Source Part Number 1268381-TL431IDRG4
Manufacturer Homepage www.ti.com
Family Name TL431
Introduction Date August 01, 2003
ECCN EAR99
Country of Origin Mexico
Halogen Free Compliant
Estimated EOL Date 2028
Popularity Medium
Supply and Demand Status Balance
Quantity per package 2,500
Ultra Librarian 3D Model Ultra Librarian TL431IDRG4 CAD Model

Description

The TL431IDRG4 from Texas Instruments is a three-terminal adjustable shunt regulator with specified thermal stability over applicable automotive, commercial, and military temperature ranges. This versatile device acts as a precision voltage reference and a regulator, providing excellent temperature stability and output current handling capability up to 100 mA. The output voltage can be set to any value between Vref (approximately 2.495 V) and 36 V with two external resistors.

Key Features

  • Adjustable Output Voltage: Range from 2.495 V to 36 V with two external resistors.
  • High Accuracy: 0.5% tolerance on reference voltage at 25°C (Grade A).
  • Low Output Noise: It offers excellent stability and low noise, suitable for precision applications.
  • Wide Operating Temperature Range: Suitable for automotive, commercial, and military applications.
  • Sink Current Capability: Capable of sourcing current up to 100 mA.
  • Surface-Mount Package: Supplied in a small outline integrated circuit (SOIC) package for easy PCB mounting.

Applications

The TL431IDRG4 is highly versatile and can be used in a variety of applications, including:

  • Adjustable voltage and current regulation
  • Precision voltage reference in power supplies
  • Switching power supply control
  • Analog-to-digital and digital-to-analog converters
  • Battery chargers
  • Motor control circuits

Reliability and Performance

Designed with reliability in mind, the TL431IDRG4 is a trusted component in critical systems. Its performance is characterized for operation from −40°C to 125°C, ensuring dependable function under a wide range of conditions. The device's low dynamic output impedance, combined with its fast turn-on response, provides excellent transient response characteristics, making it suitable for voltage regulation applications requiring high precision and rapid response to load changes.
