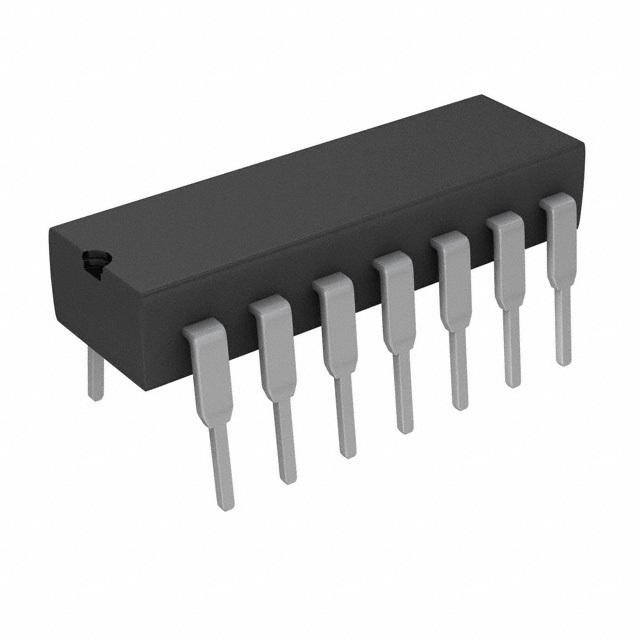

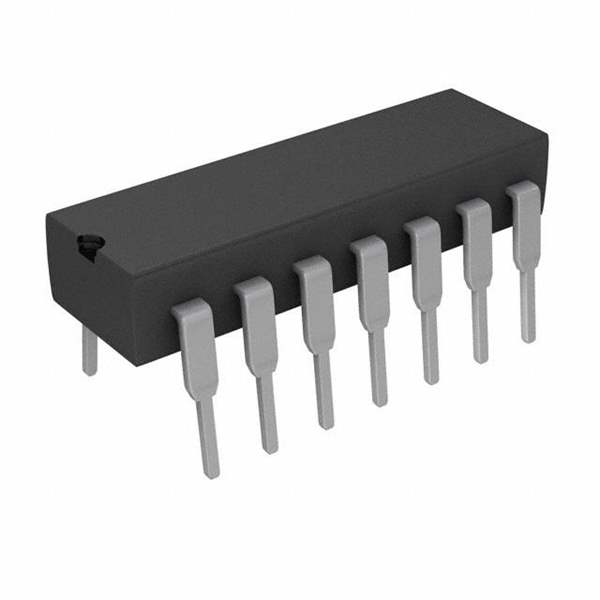

The Texas Instruments TLC2274IN is a high-performance, quad operational amplifier that combines a wide range of advanced features to deliver superior performance in various applications. This integrated circuit is part of the LinCMOS™ family, which is well-known for its low power consumption and high input impedance.

Key Features

• Low Noise: With a low noise level, the TLC2274IN provides a clean signal amplification, making it ideal for audio and instrumentation applications.
• High Output Drive: Capable of delivering a significant output current, this op-amp can drive heavier loads without compromising performance.
• Wide Supply Range: It operates over a wide supply range from 4.4 V to 16 V, providing flexibility in both single-supply and split-supply configurations.
• Low Power Consumption: The device features a typical low power consumption of 500 µA per channel, which is beneficial for battery-powered devices.
• High Input Impedance: With the high input impedance characteristic of CMOS technology, the TLC2274IN minimizes the loading effect on input sources.
• Stable Operation: The op-amp is designed to offer stable operation without external components, which simplifies circuit design.

Applications

The TLC2274IN is versatile and can be used in a wide range of applications, including:

• Audio processing and amplification
• Active filters and signal conditioning
• Analog to digital converters (ADC) interface
• Battery-powered equipment
• Portable devices
• Medical instrumentation

Package and Quality

The TLC2274IN is offered in a standard PDIP (Plastic Dual-In-Line Package) which is suitable for through-hole mounting. This makes it easy to integrate into a wide variety of printed circuit boards. Texas Instruments ensures high-quality standards for all of their products, and the TLC2274IN is no exception, providing reliable performance for critical applications.

With its combination of low power consumption, wide voltage range, and high output drive capability, the TLC2274IN from Texas Instruments stands out as a robust solution for designers looking to improve their analog circuitry.
