Introducing the TLV9054IRUCR from Texas Instruments

The TLV9054IRUCR is a cutting-edge operational amplifier developed by Texas Instruments, designed to meet the needs of modern electronic applications. This precision op-amp is part of Texas Instruments' TLV905x family and is renowned for its low power consumption and high accuracy, making it an ideal choice for battery-powered and portable devices.

Key Features

• Quad Operational Amplifiers: The TLV9054IRUCR contains four independent op-amps in a single package, providing excellent space-saving benefits for compact circuit designs.
• Low Voltage Operation: It operates at a supply voltage range from 1.8V to 5.5V, accommodating a wide array of power supply options and ensuring compatibility with both 3V and 5V systems.
• Low Power Consumption: With a quiescent current of just 150 µA per channel, this op-amp is optimized for energy efficiency, which is crucial for extending battery life in portable applications.
• Rail-to-Rail Output: The TLV9054IRUCR features rail-to-rail output swing, which maximizes the dynamic range within the given supply voltage, making it highly effective for low-voltage applications.
• High Bandwidth: A bandwidth of 1 MHz allows this op-amp to be used in a variety of applications, including signal conditioning, active filtering, and audio processing.
• Robust ESD Protection: It offers excellent electrostatic discharge (ESD) protection, ensuring the device's reliability and durability even in harsh electrical environments.

Applications

The versatility of the TLV9054IRUCR makes it suitable for a broad range of applications, such as:

• Consumer Electronics
• Medical Devices
• Portable Instrumentation
• Sensor Interfaces
• Active Filtering
• Audio Processing

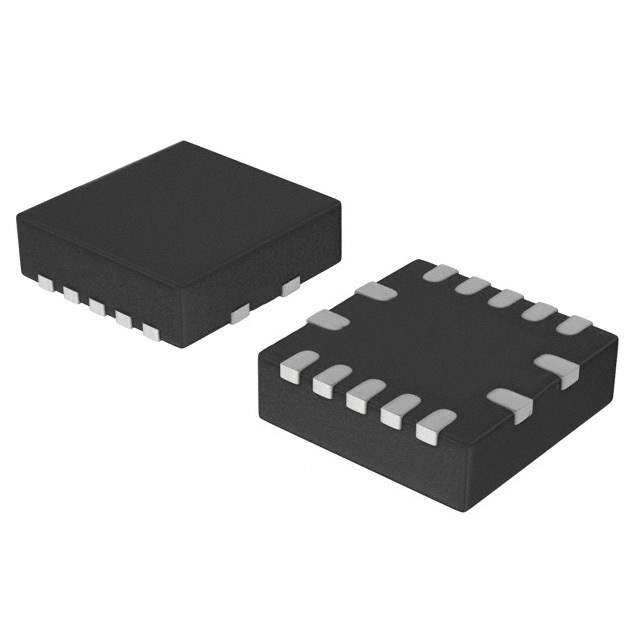

With its small form factor, the TLV9054IRUCR comes in a 14-pin VQFN (RUC) package, which is highly beneficial for space-constrained applications. Its operational stability across a wide temperature range ensures reliable performance in varying environmental conditions.

Overall, the TLV9054IRUCR from Texas Instruments represents a blend of efficiency, precision, and versatility, making it a top choice for designers who require a high-quality operational amplifier for their next project.
