Products specifications

Categories Sensors
Estimated Pruduction Lead Time 5 Weeks
Features Temperature Sensor Digital, Local -40°C ~ 125°C 8 b 4-DSBGA (1x1)
Manufacturer Texas Instruments
Package Reel - TR
Operating Temperature Range -55°C ~ 150°C
Mounting Surface Mount
Package 4-UFBGA, DSBGA
Case / Package 4-DSBGA (1x1)
Family Name TMP103
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Part Number 296-32444-2, 296-32444-1, TMP103DYFFT-ND, 296-32444-6
Quantity per package 250
Popularity High
Supply and Demand Status Balance
Win Source Part Number 937073-TMP103DYFFT
Ultra Librarian 3D Model Ultra Librarian TMP103DYFFT CAD Model

Description

Product Overview: Texas Instruments TMP103DYFFT

The Texas Instruments TMP103DYFFT is a high-precision digital temperature sensor designed for a wide range of applications that require reliable and accurate temperature monitoring. This compact sensor is part of TI's extensive TMP family, known for their quality and performance in temperature sensing technology.

Key Features

  • Accuracy: The TMP103DYFFT offers excellent accuracy, with a typical accuracy of ±1°C over a temperature range of -40°C to +125°C. This makes it ideal for critical applications where precise temperature readings are essential.
  • Interface: It features a two-wire, serial I2C interface, which allows for easy integration into existing systems and reduces complexity for system designers.
  • Size: With an ultra-small 1.6mm x 1.6mm WCSP (Wafer Chip Scale Package), the TMP103DYFFT is perfect for space-constrained applications, such as portable electronics and wearable devices.
  • Low Power Consumption: The device operates with very low power consumption, which is critical for battery-powered devices, helping to extend battery life and reduce overall power costs.
  • Multiple Device Access: Up to eight TMP103 devices can be connected on a single bus, which allows for multiple-point temperature monitoring with minimal additional hardware.

Applications

The TMP103DYFFT is versatile and can be used in various applications, including:

  • Telecommunications
  • Notebook and Desktop Computers
  • Battery Management Systems
  • Industrial Equipment
  • Medical Devices
  • Consumer Electronics

Technical Specifications

  • Supply Voltage: 1.4V to 3.6V
  • Operating Temperature Range: -40°C to +125°C
  • Resolution: 8-bit digital output

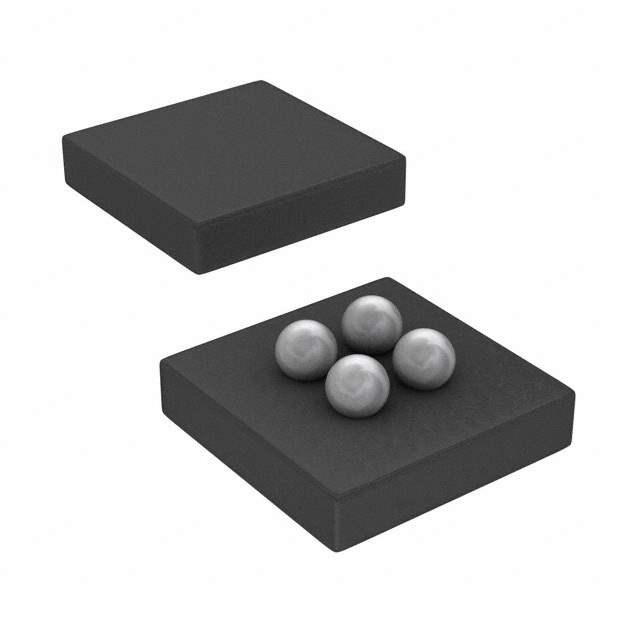

  • Package: 4-ball WCSP (DSBGA) package

The TMP103DYFFT by Texas Instruments is an ideal solution for those looking for a reliable, high-accuracy temperature sensor that occupies minimal space and can be easily integrated into a wide array of electronic systems.
