Products specifications

Category Sensors, Transducers - Temperature Sensors - Analog and Digital Output
Mfr Texas Instruments
Package Tape & Reel
Product Status Active
Sensor Type Digital, Local
Sensing Temperature - Local -55°C ~ 125°C
Output Type I²C/SMBus
Voltage - Supply 1.7V ~ 5.5V
Resolution 12 b
Features Shutdown Mode, One-Shot
Accuracy - Highest (Lowest) ±1°C (±2°C)
Test Condition -40°C ~ 75°C (-55°C ~ 125°C)
Temperature Range - Operating -55°C ~ 125°C (TA)
Mounting Type Surface Mount

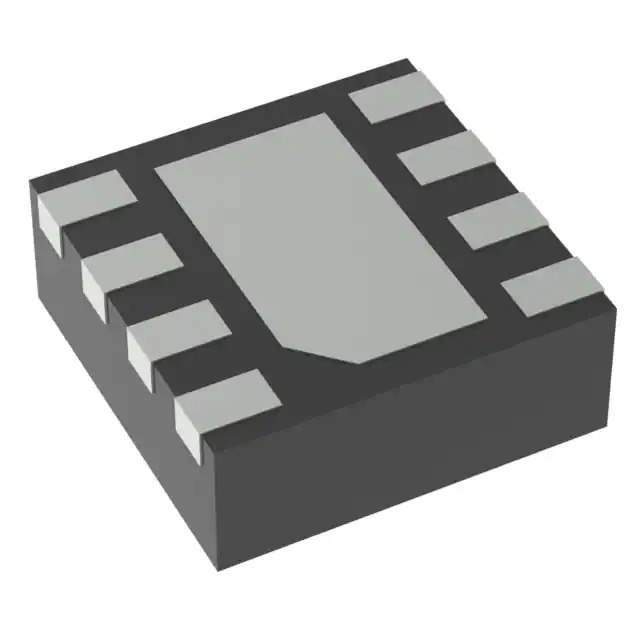

Package / Case 8-WFDFN Exposed Pad
Supplier Device Package 8-WSON (2x2)
Base Product Number TMP1075
Standard Package 3,000 pcs
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 849455-TMP1075DSGR
Ultra Librarian 3D Model Ultra Librarian TMP1075DSGR CAD Model

Description

Product Overview: TMP1075DSGR by Texas Instruments

The Texas Instruments TMP1075DSGR is a state-of-the-art temperature sensor designed for precise thermal monitoring in a variety of applications. This high-performance device offers a perfect blend of accuracy, power efficiency, and ease of use, making it an ideal choice for engineers and designers looking to integrate temperature sensing capabilities into their projects.

Key Features

  • Accuracy: The TMP1075DSGR boasts an impressive accuracy of ±1°C (max) from –40°C to +125°C, ensuring reliable temperature readings for critical applications.
  • Low Power Consumption: With its low power consumption, this sensor is optimized for battery-powered and energy-sensitive systems, contributing to longer battery life and reduced power costs.
  • Digital Output: The sensor features an I2C/SMBus interface, allowing for easy integration with microcontrollers and other digital systems, providing a hassle-free digital output for straightforward temperature readings.
  • Programmable Resolution: Users can program the resolution from 9 to 12 bits, allowing for a trade-off between conversion speed and resolution to fit the specific requirements of their application.
  • Versatile Voltage Range: Operating from a supply voltage range of 1.4V to 3.6V, the TMP1075DSGR is versatile enough to fit into diverse system designs.
  • Small Package: Housed in a small 6-pin WSON package, it occupies minimal board space, making it suitable for space-constrained applications.

Applications

The TMP1075DSGR is designed for a wide range of applications, including but not limited to:

  • Consumer Electronics
  • Personal Computing Devices
  • Industrial Systems
  • Environmental Monitoring
  • Telecommunications Equipment

With its combination of precision, low power, and digital ease of use, the TMP1075DSGR from Texas Instruments represents a sophisticated solution for temperature monitoring needs across various industries. Its compact form factor and robust feature set make it a top choice for designers seeking a reliable temperature sensor for their next project.
