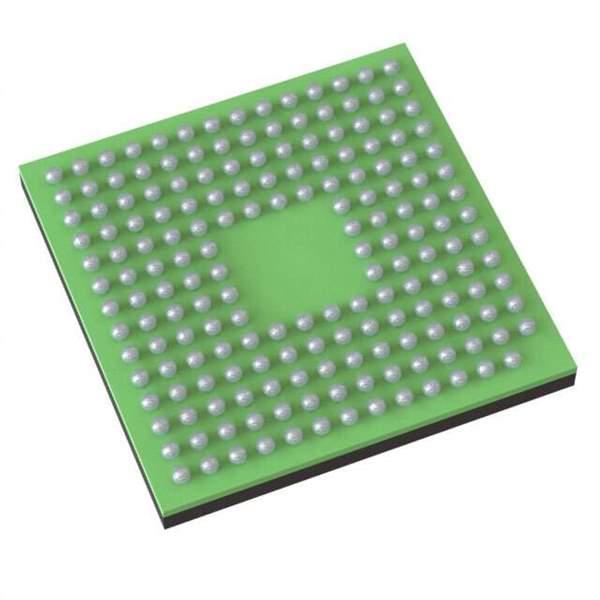

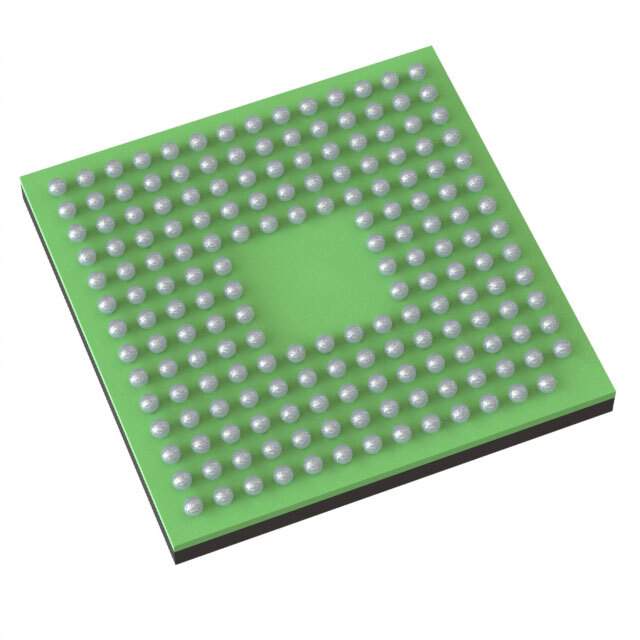

Introducing the TMS320F2812ZAYS from Texas Instruments

The TMS320F2812ZAYS is a high-performance digital signal processor (DSP) from Texas Instruments, designed for a wide range of applications. This DSP is part of the TMS320C28x™ DSP generation, which is well-known for its processing power and efficiency in handling complex algorithms and control tasks. The TMS320F2812ZAYS is particularly suited for industrial control, motor control, power conversion, and sensor processing applications.

Key Features

• High-Performance Processing: With a 32-bit CPU and a clock speed of up to 150 MHz, the TMS320F2812ZAYS delivers 150 million instructions per second (MIPS), enabling fast and efficient data processing.
• Integrated Memory: It comes with 128K x 16 Flash, 18K x 16 SARAM, allowing for robust on-chip storage options for both program and data.
• Advanced Peripherals: This DSP includes a variety of peripherals such as an Enhanced Pulse Width Modulators (ePWM), 12-bit Analog-to-Digital Converters (ADC), and a CAN module, which provide the flexibility to handle diverse application requirements.
• Robust Timers and Control: The device features a high-resolution timer, capture units, and a quadrature encoder pulse (QEP) circuit, which are essential for precise timing and control in motor control applications.
• Floating-Point Unit (FPU): The FPU supports both single-precision and double-precision operations, enhancing the performance of math-intensive operations.

Applications

The versatility of the TMS320F2812ZAYS makes it ideal for a variety of applications, including:

• Advanced Motor Control Systems
• Industrial Inverters and Converters
• Renewable Energy Systems
• Automotive Control Systems
• Robotic Systems

Development Support

Developers can take advantage of Texas Instruments' comprehensive suite of development tools for the TMS320F2812ZAYS, including Code Composer Studio™ (CCS), a robust integrated development environment (IDE), and a wide range of software libraries and application notes. This ensures a smooth development process from initial design to final product deployment.

With its powerful feature set and extensive support, the TMS320F2812ZAYS is a reliable and efficient choice for engineers and designers seeking to create advanced digital control systems.
