Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Texas Instruments
Packaging Reel - TR
Type Zener
Bidirectional Channels 4
Voltage - Reverse Standoff (Typ) 5.5V (Maximum)
Minimum Breakdown Voltage 6V
Maximum Clamping Voltage 13V (Typ)
Current - Peak Pulse (10/1000μs) 3A (8/20μs)
Power - Peak Pulse 40W
Power Line Protection No
Applications General
Operating Temperature Range -40°C ~ 125°C (TA)
Mounting SMD

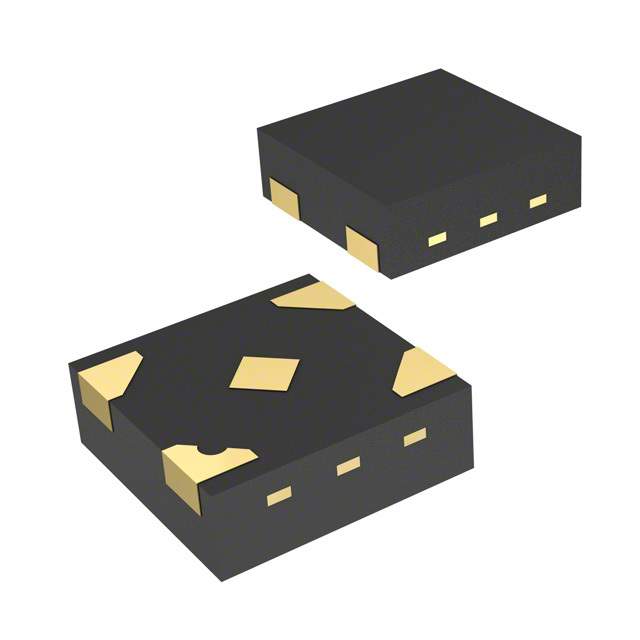

Package 4-XFDFN
Manufacturer Package 4-X2SON (0.80x0.80)
Win Source Part Number 1271965-TPD4E101DPWR
Manufacturer Homepage www.ti.com
Family Name TPD4E101
Introduction Date May 28, 2012
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2028
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TPD4E101DPWR CAD Model

Description

The TPD4E101DPWR is a cutting-edge transient voltage suppression (TVS) device designed by Texas Instruments (TI) to protect sensitive electronics from electrostatic discharge (ESD) and other voltage-induced transient events. This highly integrated protection solution is ideal for safeguarding high-speed interfaces such as USB 2.0, Ethernet, and other communication ports.

Key Features

  • Low Clamping Voltage: The device offers superb protection by clamping voltage transients and dissipating ESD strikes to ground, thereby safeguarding the downstream electronics.
  • Compact Package: Housed in a space-saving 8-pin DWR package, the TPD4E101DPWR is perfect for use in space-constrained applications.
  • High-Speed Data Line Protection: It is capable of protecting up to four data or I/O lines, maintaining signal integrity without compromising on protection capabilities.
  • IEC Compatibility: The device complies with IEC 61000-4-2 (ESD) standards, absorbing ESD strikes of ±8 kV (contact) and ±15 kV (air), ensuring robust protection for sensitive circuitry.
  • Low Leakage Current: It features a low leakage current, which is essential for battery-powered devices, helping to extend battery life.

Applications

The TPD4E101DPWR is versatile and can be used in a variety of applications, including:

  • Mobile Handsets
  • Portable Electronics
  • USB Peripherals and Ports
  • Serial Interfaces
  • High-Speed Data Lines

Technical Specifications

Attribute Value Channels 4 Package Type DWR Clamping Voltage Low ESD Protection IEC 61000-4-2 ±8kV (contact), ±15kV (air) Leakage Current Low

Overall, the TPD4E101DPWR from Texas Instruments represents a reliable and efficient solution for protecting sensitive electronic components from the dangers of electrostatic discharge and other transient voltage events. Its small footprint and high level of integration make it an excellent choice for designers looking to enhance the durability and longevity of their products.
