The TPS62236DRYT is a high-efficiency synchronous step-down DC/DC converter from Texas Instruments, tailored to meet the power management requirements of battery-powered and low-power applications. This miniature, high-frequency device is designed to operate with a single-cell lithium-ion battery or a 2.5V to 6V input voltage range, making it versatile for various portable devices.

Key Features

• High Efficiency: The TPS62236DRYT offers an outstanding conversion efficiency of up to 95%, which is critical for extending battery life in portable devices.
• Adjustable Output Voltage: Users can configure the output voltage from 1.2V to 6V, accommodating a wide range of microprocessors and peripherals.
• Ultra-Low Quiescent Current: It boasts an ultra-low quiescent current of 15µA, further conserving power when the device is in standby mode.
• Power Save Mode: The converter automatically enters power save mode at light load currents, which reduces switching losses and improves efficiency.
• Fast Transient Response: The device's high switching frequency and advanced control scheme enable a fast transient response, ensuring stable performance during rapid load changes.

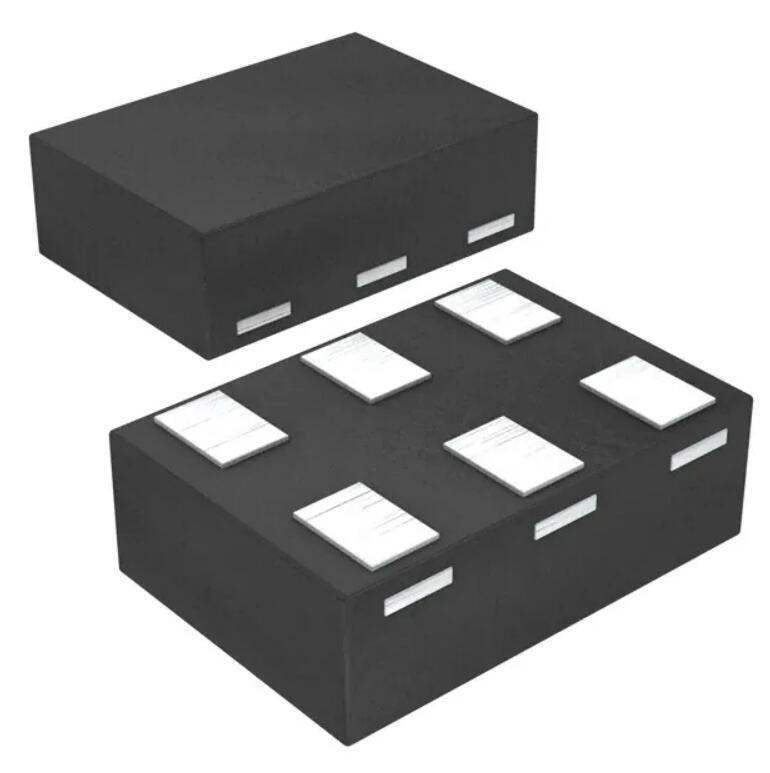

• Small Package: Housed in a tiny 2x2mm 6-pin SON package, the TPS62236DRYT is optimized for space-constrained applications.

Applications

The TPS62236DRYT is ideal for a variety of applications, including:

• Smartphones and Tablets
• Portable Media Players
• Wearable Technology
• Wireless Headsets and Earbuds
• GPS Devices
• Low-Power Handheld Devices

Quality and Reliability

Texas Instruments is known for its commitment to quality and reliability, and the TPS62236DRYT is no exception. This product is manufactured with the highest standards to ensure consistent performance and longevity in the field. Engineers and designers can rely on the TPS62236DRYT for their critical power management needs in portable and low-power applications.
