The TPS73601DBV represents a high-quality, low-dropout (LDO) linear voltage regulator designed by Texas Instruments, a leader in semiconductor technology. This regulator is particularly well-suited for applications requiring a low voltage power supply with a high degree of stability and low noise.

Key Features

• Adjustable Output: The TPS73601DBV offers an adjustable output voltage range from 1.2V to 5.5V, which allows for flexibility in various applications.
• High Current Capability: It can deliver up to 400mA of output current, making it suitable for powering a wide range of devices.
• Low Dropout: The low dropout voltage (typically 250mV at full load) ensures efficient operation even when the input voltage is close to the output voltage, which is ideal for battery-powered devices.
• Stable with Low-ESR Capacitors: The regulator is stable with ceramic capacitors, which have lower equivalent series resistance (ESR) than other types, improving performance and reliability.
• Thermal Shutdown Protection: It includes an integrated thermal shutdown feature that protects the device from overheating, enhancing the product's longevity.
• Overcurrent Protection: Built-in overcurrent protection guards the device and the load from damage due to excessive currents.

Applications

The TPS73601DBV is ideal for a wide range of applications, including:

• Portable electronics
• Wireless communication devices
• Power supply for DSPs and microcontrollers
• Battery-powered equipment
• Medical devices

Package and Quality

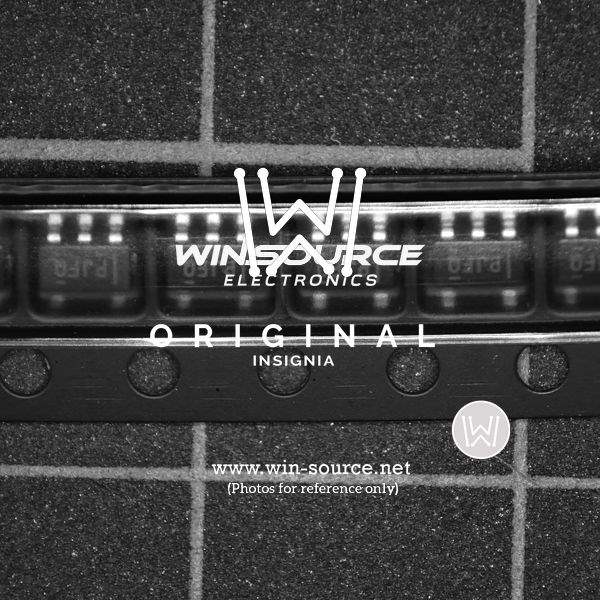

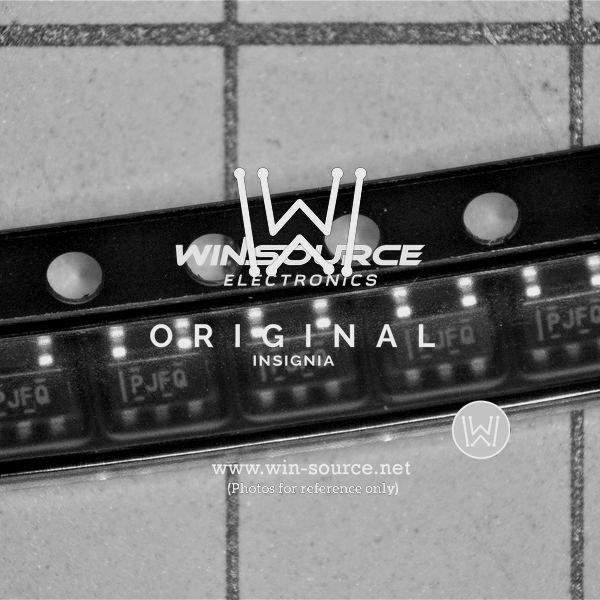

The device comes in a small SOT-23-5 package, which is compact and suitable for space-constrained applications. Texas Instruments' commitment to quality ensures that the TPS73601DBV meets the highest industry standards for performance and reliability.

Summary

In summary, the TPS73601DBV from Texas Instruments is a versatile, high-performance LDO voltage regulator that offers adjustable output, high current capability, and low dropout voltage. Its features such as thermal shutdown, overcurrent protection, and stability with low-ESR capacitors make it an excellent choice for a variety of applications requiring efficient power management.
