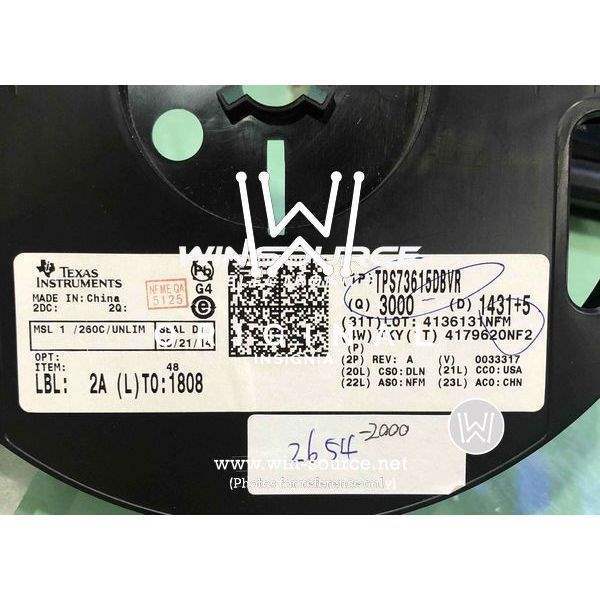

Product Overview: TPS73615DBVRG4

The TPS73615DBVRG4 is a high-performance, low-dropout (LDO) voltage regulator from Texas Instruments, designed to deliver a stable and precise voltage supply. This component is part of the TPS736xx series, which is known for its high accuracy, low noise, and low quiescent current, making it an ideal choice for sensitive analog circuits, RF applications, and post-regulation for switching power supplies.

Key Features

• Output Voltage: This LDO regulator provides a fixed output voltage of 1.5V, which is suitable for a wide range of low-voltage electronics.
• High Accuracy: The TPS73615DBVRG4 offers excellent regulation with an accuracy of 1% over the full temperature range, ensuring reliable performance in critical applications.
• Low Dropout Voltage: It has a low dropout voltage, which means it can regulate the output voltage even when the input-to-output differential is minimal, thus improving efficiency.
• Low Quiescent Current: The device features a low quiescent current, making it suitable for battery-powered devices where power conservation is essential.
• Thermal and Overcurrent Protection: Built-in thermal shutdown and overcurrent protection features safeguard the device and the system from excessive temperatures and current levels.
• Package: The regulator comes in a small SOT-23-5 package, which is ideal for space-constrained applications.

Applications

The versatility of the TPS73615DBVRG4 allows it to be used in a variety of applications, including:

• Portable and battery-powered devices
• Wireless communication systems
• Power supplies for cameras and RF circuits
• Microcontroller or microprocessor power supplies
• Medical equipment

Quality and Reliability

Texas Instruments is renowned for its commitment to quality and reliability, and the TPS73615DBVRG4 is no exception. This product is designed to meet the stringent requirements of the industrial and commercial markets, ensuring long-term stability and performance in a wide range of operating conditions.

In summary, the TPS73615DBVRG4 from Texas Instruments is a robust, high-accuracy LDO voltage regulator, offering the perfect balance of performance, protection, and package size for advanced electronic systems.
