Product Overview: Texas Instruments TPS78233DDCR

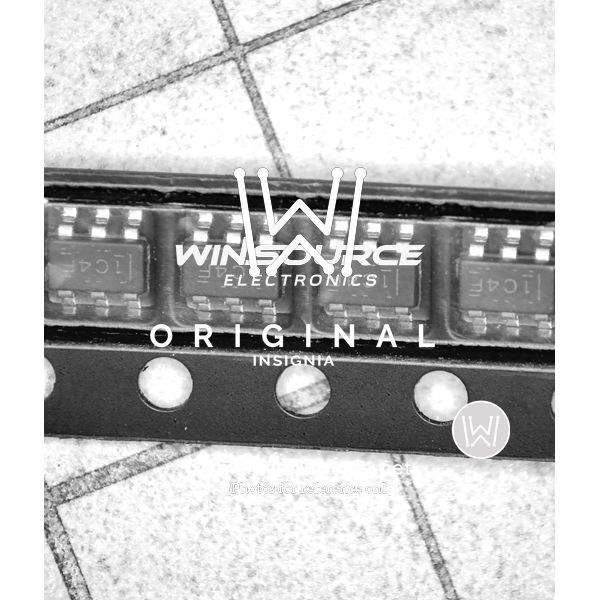

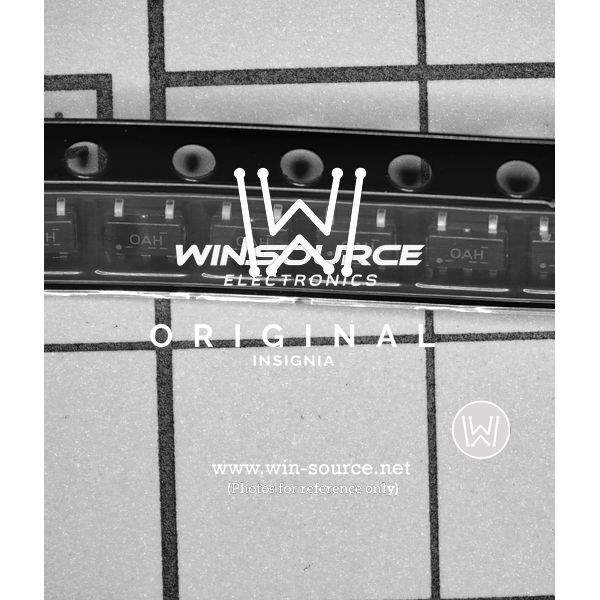

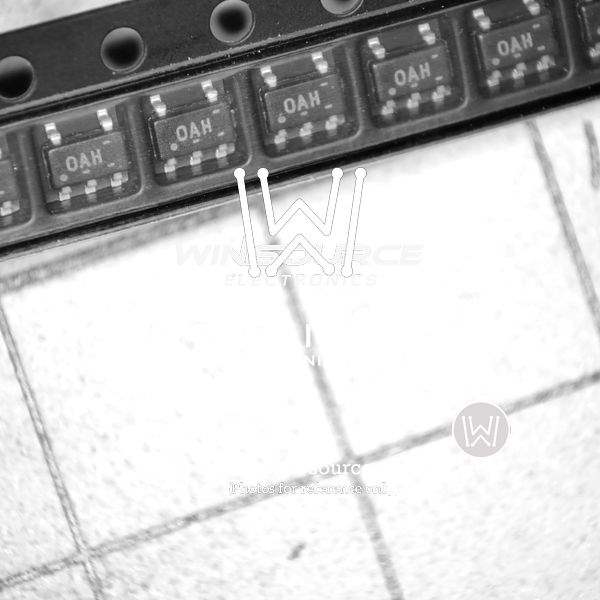

The Texas Instruments TPS78233DDCR is a high-performance, low-dropout (LDO) voltage regulator designed to deliver a stable and precise output voltage. This component is part of Texas Instruments' extensive range of power management integrated circuits, known for their reliability and efficiency. The TPS78233DDCR is particularly suitable for space-constrained applications due to its ultra-small 5-pin SOT-23 package, making it an ideal choice for portable electronics, medical devices, and other applications requiring a compact power solution.

Key Features

• Output Voltage: The device provides a fixed output voltage of 3.3V, which is common for powering digital circuits and microcontrollers.
• High Accuracy: With an output voltage accuracy of 2%, the TPS78233DDCR ensures precise power delivery for sensitive electronic components.
• Low Dropout: The LDO regulator boasts a low dropout voltage, enabling it to maintain a stable output even when the input voltage is close to the output voltage, making it highly efficient in battery-operated devices.
• Low Quiescent Current: It features a very low quiescent current of 1µA in shutdown mode and 500µA during operation, which helps to maximize battery life in portable applications.
• Thermal Shutdown and Overcurrent Protection: These safety features protect the device and the load from damage due to excessive temperature and current conditions.

Applications

The versatility of the TPS78233DDCR allows it to be used in a variety of applications, including:

• Battery-powered devices
• Portable and handheld equipment
• Healthcare and medical instrumentation
• Microcontroller power supplies
• Wireless communication systems

The TPS78233DDCR from Texas Instruments is a robust power management solution that combines performance, precision, and miniaturization. Its comprehensive feature set ensures reliable operation in a range of electronic devices, while its small footprint accommodates the ever-decreasing size of modern electronic components. Whether it's for industrial, consumer, or medical use, the TPS78233DDCR stands out as a top choice for designers looking for a dependable LDO voltage regulator.
