The TPS84250RKGR is a highly efficient, integrated power solution from Texas Instruments that simplifies the design of complex power systems. This module incorporates a switching regulator with integrated FETs, an inductor, and passives into a small, low-profile package. Designed for versatility, it is well-suited for a broad range of applications, including telecommunications, networking, industrial, and many others.

Key Features

• Integrated Solution: The TPS84250RKGR combines a DC-DC converter with an inductor and passives to minimize design time and simplify power supply layouts.
• Adjustable Output Voltage: This module offers an adjustable output voltage range from 0.7V to 5.5V, allowing for flexibility in various applications.
• High Efficiency: With its advanced design, the TPS84250RKGR achieves high efficiency, which helps to reduce power loss and improve system reliability.
• Thermal Performance: The device is encapsulated in a thermally-enhanced package that provides excellent thermal dissipation and performance.
• Wide Input Voltage Range: It operates over a wide input voltage range from 4.5V to 17V, accommodating a variety of power sources.
• Protection Features: The module includes over-current, over-voltage, under-voltage, and over-temperature protections to ensure safe operation under abnormal conditions.

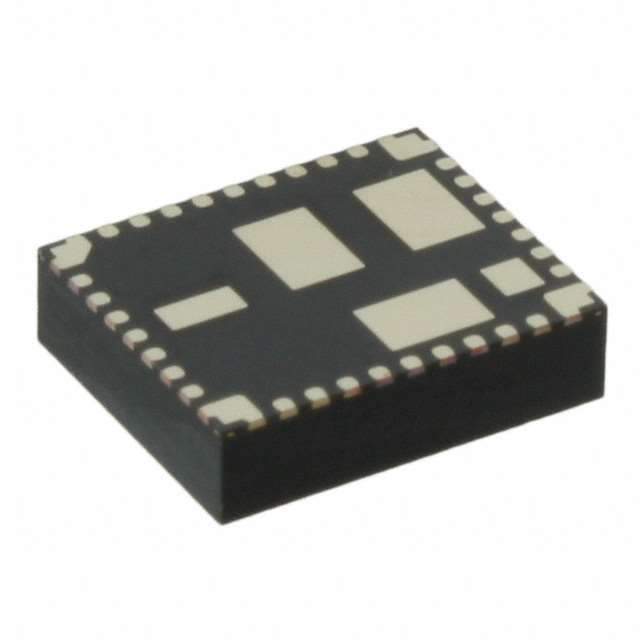

• Small Footprint: The compact QFN package measures just 10.4mm x 9mm x 2.8mm, making it ideal for space-constrained applications.

Applications

The TPS84250RKGR is designed for use in a variety of applications, including:

• Point-of-Load applications from a 5V or 12V rail
• Telecommunication and networking equipment
• Industrial and factory automation systems
• FPGA, DSP, and ASIC power supplies

Technical Specifications

For detailed information and technical support, visit the Texas Instruments website or contact their support team directly.
