Introducing the TUSB564IRNQT from Texas Instruments

The TUSB564IRNQT is a high-performance, versatile USB retimer with signal conditioning capabilities, designed by the renowned semiconductor company, Texas Instruments. This advanced integrated circuit is specifically engineered to enhance signal integrity and extend the reach of high-speed USB signals, making it an essential component for a variety of USB applications.

Key Features

• USB 3.1 Gen 1 and Gen 2 Support: The TUSB564IRNQT is compatible with both USB 3.1 Gen 1 (5 Gbps) and Gen 2 (10 Gbps) standards, ensuring it can handle the latest high-speed data transfer requirements.
• Adjustable Equalization and Output Swing: With built-in features for adjustable equalization and output swing, this device can be fine-tuned to optimize performance over a range of cable types and lengths.
• Low Power Consumption: Designed with energy efficiency in mind, the TUSB564IRNQT operates with low power consumption, making it suitable for battery-powered devices and applications where power efficiency is critical.

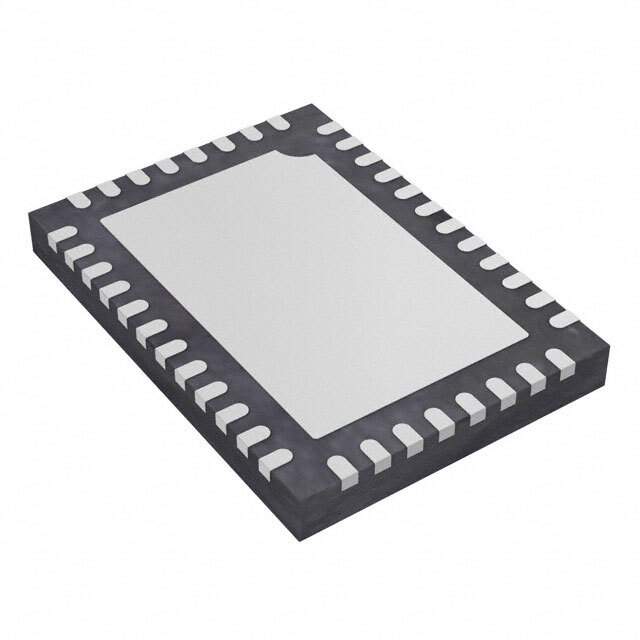

• Small Form Factor: Housed in a compact QFN package, this retimer is ideal for space-constrained applications, allowing for integration into a variety of modern electronic devices without compromising on performance.
• Channel Configuration Flexibility: It offers flexible channel configuration options, providing support for a single USB 3.1 port with four differential channels.

Applications

The TUSB564IRNQT is an excellent choice for a wide range of applications that require reliable, high-speed USB connectivity. It is particularly well-suited for:

• Consumer Electronics
• Desktop and Laptop Computers
• Docking Stations
• Monitors and Display Interfaces
• USB Hubs and Peripherals

Quality and Reliability

As with all Texas Instruments products, the TUSB564IRNQT is manufactured to the highest quality standards, ensuring reliability and performance in the most demanding conditions. Its robust design and advanced features make it an ideal choice for designers looking to enhance USB signal integrity in their next project.

Whether you're developing consumer electronics, industrial interfaces, or any other USB-enabled device, the TUSB564IRNQT provides the performance and flexibility needed to create a seamless user experience.
