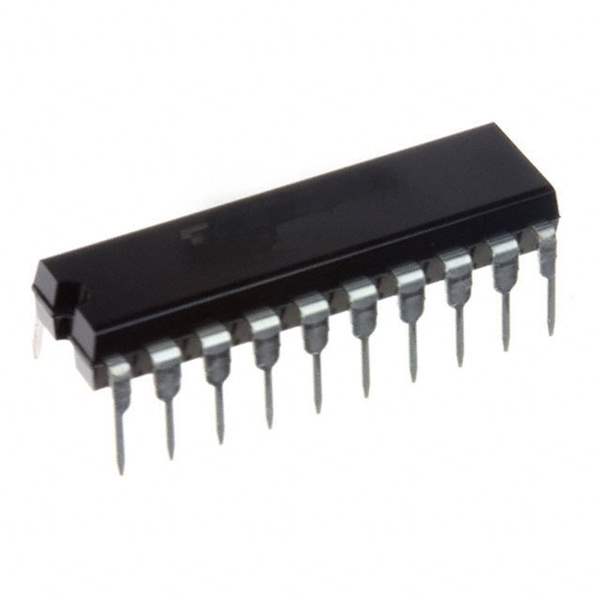

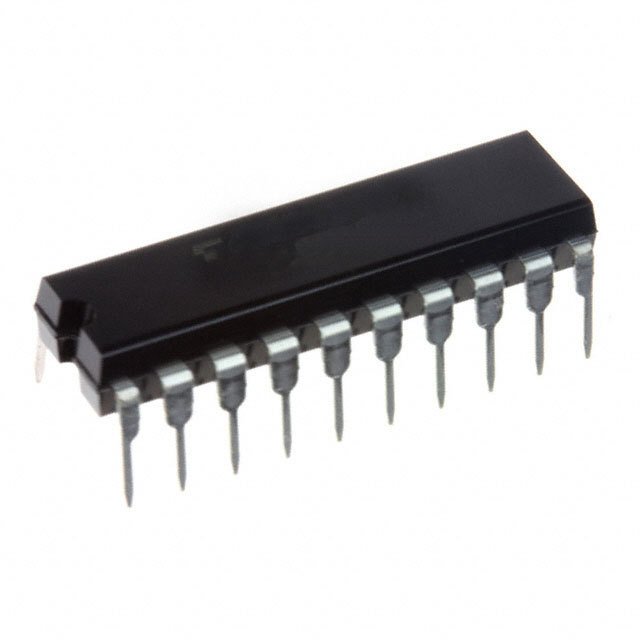

Same model may have multiple batches, images only for reference.

74HC541AP

Name: 74HC541AP
Brand: Toshiba Semiconductor and Storage
SKU: 27009
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	74HC541AP
Manufacturer	Toshiba Semiconductor and Storage
Catalog	Logic - Buffers, Drivers, Receivers, Transceivers
Description	IC BUFF/DVR TRI-ST 8BIT 20DIP
Datasheet	74HC541AP Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Integrated Circuits
Manufacturer	Toshiba Semiconductor and Storage
Packaging	Tube/Rail
Status	Active
Logic Type	Buffer, Non-Inverting
Number of Elements	1
Number of Bits per Element	8
Output Type	Push-Pull
Current - Output High, Low	7.8mA, 7.8mA
Supply Voltage - Operating	2 V to 6 V
Temperature Range - Operating	-40°C to 85°C (TA)
Mounting	Through Hole
Case / Package	20-DIP
Win Source Part Number	076290-74HC541AP
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian 74HC541AP CAD Model

Alternative Products

Description

74HC541AP

The 74HC541AP is an octal non-inverting buffer/line driver offering high-performance CMOS technology. This component is typically used in signal buffering and data routing in digital circuits.

Applications/Projects:
- Memory Address Driving
- Bus Control and Isolation
- Buffering of High-speed Signals
Features and Benefits:
- Supply Range: 2V to 6V
- Low Power Consumption Handling
- 3-state outputs for dynamic circuits
- High Data Rate Transmission
Additional Details:
- Operating Temperature: -40°C to +85°C
- Packages include DIP and surface-mount options
