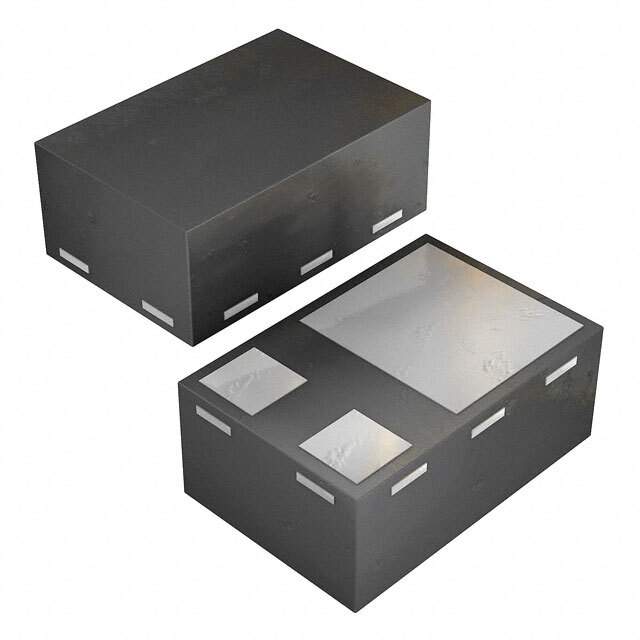

The SSM3J46CTB is a P-channel MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) manufactured by Toshiba Semiconductor and Storage. This MOSFET is designed for low-voltage applications requiring efficient switching and load control. Its low on-resistance (RDS(on)) minimizes power losses, making it suitable for battery-powered devices and energy-efficient designs. The compact package allows for high-density mounting on printed circuit boards.

Applications

• Load Switching: Controls power supply to various circuit blocks in electronic devices.
• Power Management: Used in power management circuits for DC-DC conversion and voltage regulation.
• Battery Protection: Protects batteries from over-discharge and over-current conditions.
• Portable Devices: Ideal for use in smartphones, tablets, and other battery-powered devices.
• LED Lighting: Controls the brightness and on/off state of LEDs.

Features

• P-Channel MOSFET: Operates as a P-channel enhancement mode MOSFET.
• Low On-Resistance (RDS(on)): Minimizes conduction losses and improves efficiency.
• Low Threshold Voltage (Vth): Enables operation at low gate voltages, compatible with microcontrollers.
• Small Package: Available in a compact SOT-23 package for space-saving designs.
• High-Speed Switching: Provides fast switching speeds for efficient operation.
• Pb-Free Lead Plating: Complies with RoHS environmental standards.

Benefits

• Improved Efficiency: Low RDS(on) reduces power losses and increases overall system efficiency.
• Extended Battery Life: Low power consumption extends battery life in portable devices.
• Space Savings: Small package allows for high-density circuit layouts.
• Easy to Use: Low threshold voltage simplifies interfacing with microcontrollers and other control circuits.
• Enhanced System Reliability: High-speed switching and robust design ensure reliable operation.

Additional Details

The SSM3J46CTB features a maximum drain-source voltage (VDS) of -20V and a continuous drain current (ID) of typically -1.7A. The gate-source voltage (VGS) is rated at ±8V. The on-resistance RDS(on) is typically 145 mΩ at VGS = -4.5V. The threshold voltage Vth is typically -0.4V. The operating temperature range is typically from -40°C to +150°C. The device is encapsulated in a small SOT-23 (SC-59) surface mount package. It's designed to be lead-free and RoHS compliant, meeting modern environmental standards. The gate charge is minimized to improve switching speeds and reduce power losses during switching transitions. This MOSFET provides a good balance of performance, efficiency, and size, making it a popular choice for various power management applications.
