Same model may have multiple batches, images only for reference.

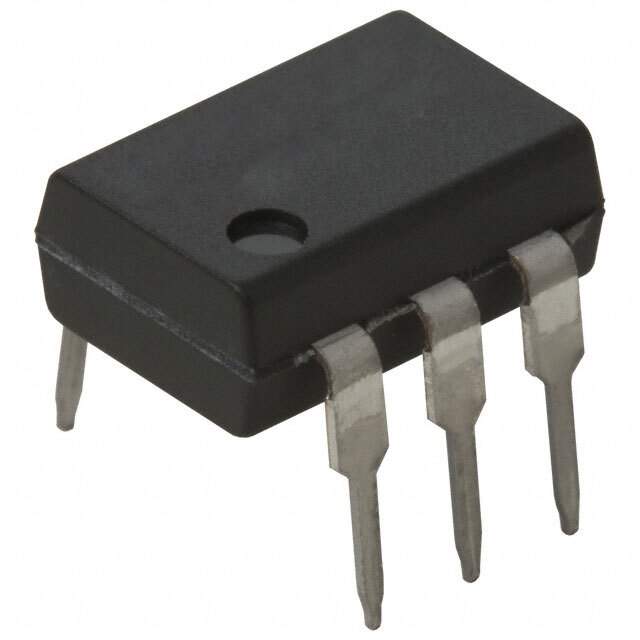

TLP3542 Real Image
Same model may have multiple batches, images only for reference.

TLP3542

Part No TLP3542
Manufacturer Toshiba Semiconductor and Storage
Catalog Solid State Relays
Description PHOTOCOUPLER PHOTORELAY 6-DIP
Datasheet
TLP3542 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Toshiba Semiconductor and Storage
Packaging Tube/Rail
Status Active
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Max On Resistance 100 mOhm
Load Current 2.5A
Voltage - Input 1.33VDC
Voltage - Load 0 to 60 V
Mounting Through Hole
Termination Style PC Pin
Case / Package 6-DIP (Cut), 5 Lead
Relay Type Relay
Win Source Part Number 056693-TLP3542
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Test & Measurement, Power Management, Security
Ultra Librarian 3D Model Ultra Librarian TLP3542 CAD Model

Description

The Toshiba Semiconductor and Storage TLP3542 is a relay electronic component that comes in a tube/rail packaging with a PC pin termination style. The supply and demand status of this component is currently limited. It is commonly used in test & measurement, power management, and security applications.
